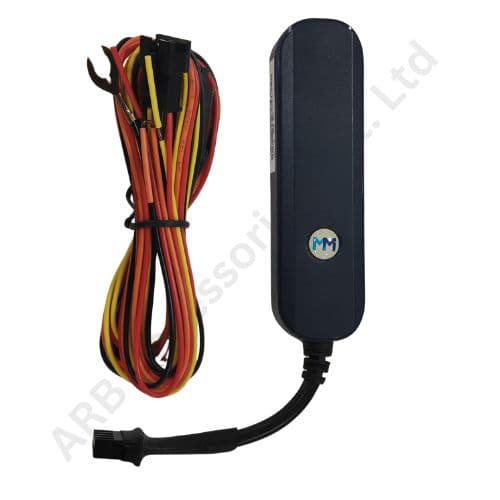

2G Telematics Module for Hardware BMS

A compact wired telematics module for commercial fleet and industrial equipment operators. It reports location and ignition status from a company-owned vehicle or machine back to the operator's own fleet management dashboard, and is designed to pair with a hardware BMS in electric and hybrid fleet vehicles.

This is an OEM fleet-management component intended for installation by the owner of the vehicle or equipment.

Key Features

2G GSM Network Support Operates over 2G GSM (850/900/1800/1900 MHz) for location reporting and telemetry data transmission.

GNSS Positioning Reports vehicle position to the fleet operator's dashboard for route planning and utilisation reporting.

Wired Power Supply Multi-colour cable harness connects directly to vehicle power for continuous operation.

Ignition Status (ACC) Input Reports engine ON/OFF state so operators can log machine run-hours and schedule maintenance.

Auxiliary I/O Spare input and output lines for integration with a hardware BMS or other on-board equipment.

LED Indicators Internal LEDs indicate GNSS signal, GSM status and power status.

Wiring Colour Code (Typical)

Red: Power (+12V/+24V) Black: Ground Yellow: Ignition (ACC) Orange/Brown: Auxiliary output White/Green: Auxiliary input (Actual wiring may vary by manufacturer. Refer to the included manual for installation.)

Common Applications

Fleet utilisation and run-hour reporting for company-owned vehicles Logistics and delivery fleet dispatch planning Agricultural and construction equipment run-hour logging Telemetry pairing with hardware BMS in electric fleet vehicles

Package Contents

1x 2G Telematics Module 1x Wiring Harness User manual (installation and setup)
