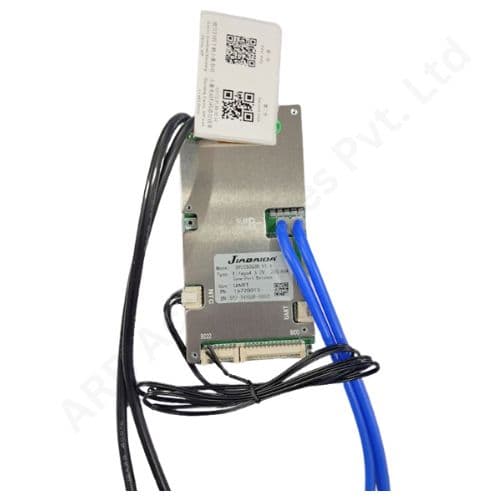

JBD SMART BMS 6-22S 100A SP22S003B

JBD Smart BMS 6-22S 100A (SP22S003B) Charge and discharge are both at the same port

[Product Data Sheet (SP22S003B)(https://drive.google.com/file/d/1-s56zuxg9slZIGO625q2EgrkJfW16Hl0/)

• •Cell specifications: 6~22 strings of Lithium Iron Battery
• •Interface type: Charge and discharge are both at the same port
• •charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 100A
• •Continuous discharging current: 100A
• •Consumption of running: ≤15mA
• •Consumption of sleep: ≤2000uA
• •Operating temperature: -20°C~75°C

The JBD SMART BMS 60A SP22S003B (6-22S) is a high-performance Battery Management System designed for lithium-ion and LiFePO4 battery packs with configurations from 6 to 22 series cells. It supports a continuous discharge current of 60A, making it suitable for a range of moderate to high-power applications. The BMS features essential protection functions, including overcharge, over-discharge, overcurrent, short circuit, and temperature management, ensuring safe and efficient operation. With active cell balancing, it helps maintain voltage uniformity across all cells. The system supports UART, RS485, and CANBUS communication for seamless integration and real-time monitoring, with Bluetooth connectivity for diagnostics, making it ideal for solar energy storage, e-bikes, and backup power solutions.
