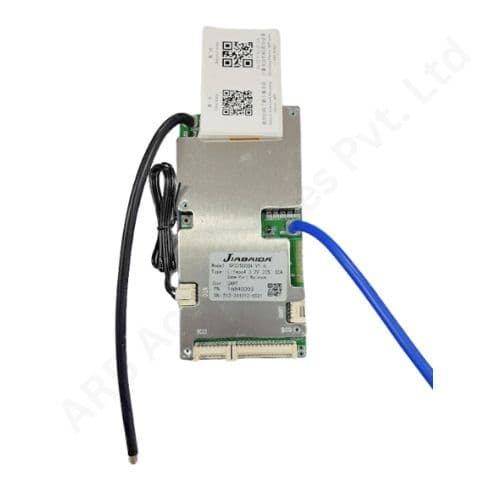

BMS 6-22S 50A SMART JBD (SP22S003A) (73b9)

JBD Smart BMS 6-22S 50A (SP22S003A) Charge and discharge are both at the same port

Product Data Sheet (SP22S003A)

• •Cell specifications: 6~22 strings of Lithium Iron Battery
• •Interface type: Charge and discharge are both at the same port
• •charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 50A
• •Continuous discharging current: 50A
• •Consumption of running: ≤15mA
• •Consumption of sleep: ≤2000uA
• •Operating temperature: -20°C~75°C

The JBD SMART BMS 50A SP22S003A (6-22S) is a versatile Battery Management System designed for lithium-ion and LiFePO4 battery packs with 6 to 22 series cells. It supports a continuous discharge current of 50A, making it suitable for mid-range applications that require balanced power output. This BMS includes essential protection features such as overcharge, over-discharge, overcurrent, short circuit, and temperature safeguards, ensuring safe operation and extended battery life. With active cell balancing, it ensures consistent voltage across cells. The system supports UART, RS485, and CANBUS communication for seamless integration with external monitoring systems, and Bluetooth for real-time diagnostics, making it ideal for solar energy storage, e-mobility, and backup power systems.
