BMS LFP 4S 10A BLUE SQURE (SLCT) (7fd0)

SLCT BMS LFP 4S 10A BLUE SQURE Hardware

Product Data Sheet

The BMS LFP 04S 10A BLUE SQUARE (SLCT) is a high-efficiency Battery Management System (BMS) crafted for 4S (4 series) LiFePO₄ battery packs, with a nominal voltage of 12.8V. Designed in a sturdy blue square PCB form, this board supports up to 10A continuous current, providing essential safety and long-term performance for medium-duty lithium battery systems.

Technical Specifications

• •This Data sheet is for Lichtronics 4S 10A LiFePo4 PCM/BMS
• •Charging Voltage - DC:14.4V CC/CV
• •Max continuous charging current - 10A
• •Over charge detection voltage - 3.65±0.05V
• •Over discharge detection voltage -2.33±0.1V
• •Over current detection current - 12.5±2A
• •Operating Temperature- -45°C --+65°C
• •Storage Temperature- -45°C -- +85°C

Key Features

Complete Safety System

• •Overcharge and Overdischarge Cutoffs protect battery health and increase cycle life.
• •Overcurrent & Short Circuit Protection respond instantly to anomalies, safeguarding connected loads.
• •Built-in auto-recovery after fault conditions for minimal manual resets.

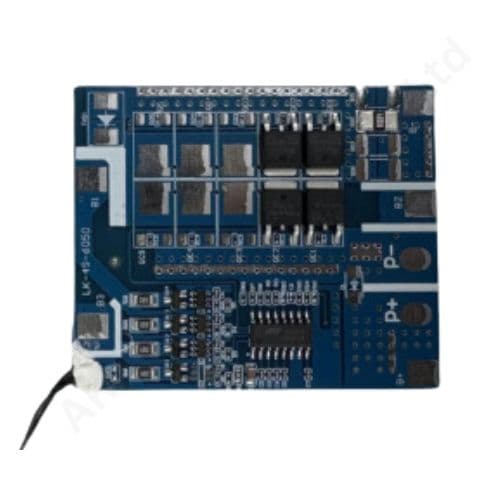

Sturdy Blue Square Design

• •Optimized component layout on a thermally stable square PCB.
• •Thick copper traces ensure reliable current handling.
• •Mounting holes and marked solder pads make it DIY- and installer-friendly.

Ideal Applications

This BMS is perfect for medium-current applications using 4S LiFePO₄ battery packs:

• •Solar-powered home lighting systems
• •Cordless tools and backup kits
• •DIY electric robots and AGVs
• •Emergency and LED lighting systems
• •12V battery banks for embedded systems
