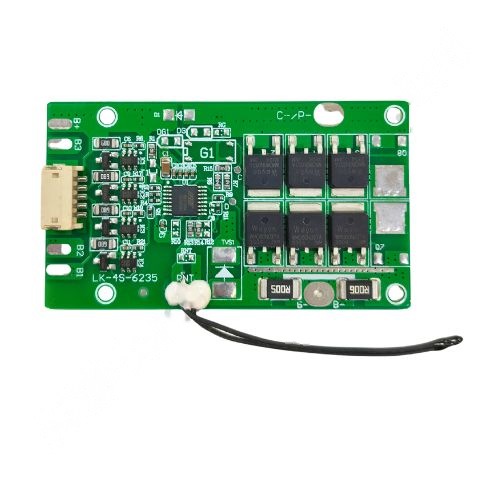

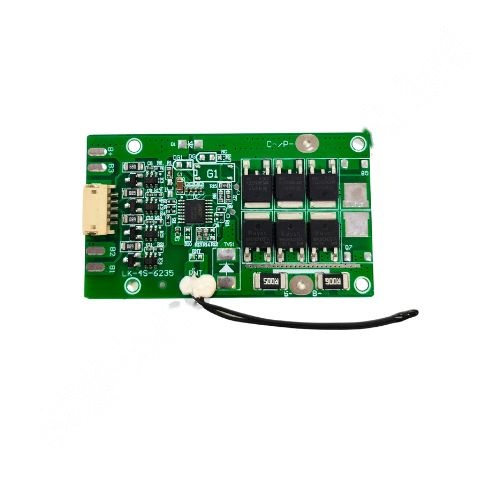

BMS LFP 4S 15A WITH BAL WITH CONNECTOR (SLCT) (7fd2)

SLCT BMS LFP 4S 15A With Balance With Connector Hardware

Product Data Sheet

The BMS LFP 4S 15A with Balance and Connector (SLCT) is a premium-grade Battery Management System tailored for LiFePO₄ (Lithium Iron Phosphate) battery packs operating in a 4S (4 Series Cell) configuration. Built to handle up to 15 Amps of continuous current, this BMS offers superior protection, robust balancing capability, and hassle-free connectivity through its pre-mounted JST-style connector.

Technical Specifications

• •This Data sheet is for Lichtronics 4S 15A LiFePo4 PCM/BMS
• •Charging Voltage - DC:14.4V CC/CV
• •Max continuous charging current - 15A
• •Over charge detection voltage - 3.65±0.05V
• •Over discharge detection voltage -2.33±0.1V
• •Over current detection current - 17.5±3A
• •Operating Temperature- -45°C --+65°C
• •Storage Temperature- -45°C -- +85°C

Key Features

Comprehensive Battery Protection

• •Overcharge & Overdischarge Protection
• •Overcurrent & Short Circuit Protection
• •Cell Balancing – Passive balancing helps equalize voltage across cells for long-term health
• •Auto Recovery Function – Automatically resumes after fault clears

Easy Integration

• •Plug-and-Play JST Connector – Easily interface with your battery harness
• •Secure PCB design with mounting holes for embedded applications
• •Ideal for LiFePO₄ battery packs used in solar, backup, robotics, and portable power

Ideal For:

• •Solar-based 12.8V battery systems
• •E-bikes, e-scooters, and mobile power tools
• •DIY Battery Packs and Inverter setups
• •Robotic or automation systems
• •Emergency LED lighting power supplies
• •General Battery Energy Storage Devices (BESD)
