BMS LFP 4S 30A (SLCT) (7fd5)

SLCT BMS LFP 4S 30AMP Hardware

Product Data Sheet

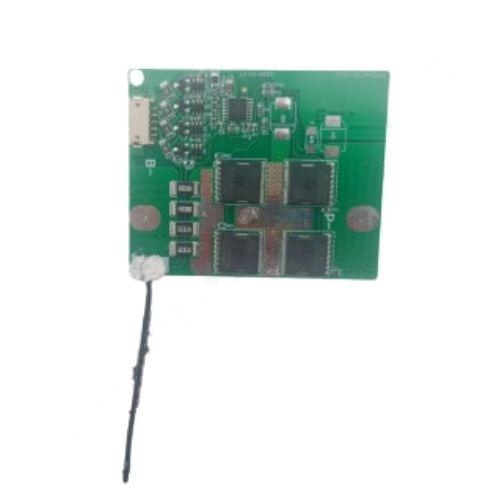

The BMS LFP 4S 30A (SLCT) is a robust and intelligent Battery Management System (BMS) tailored for 4S (4 Series) LiFePO₄ (Lithium Iron Phosphate) batteries. Designed to handle up to 30 Amps of continuous discharge current, this BMS is the perfect companion for high-drain battery packs used in energy storage, portable power systems, and e-mobility applications.

Technical Specifications

• •This Data sheet is for Lichtronics 4S 30A LiFePo4 PCM/BMS
• •Charging Voltage - DC:14.4V CC/CV
• •Max continuous charging current - 30A
• •Over charge detection voltage - 3.65±0.05V
• •Over discharge detection voltage -2.32±0.1V
• •Over current detection current - 38-46A
• •Operating Temperature- -45°C --+65°C
• •Storage Temperature- -45°C -- +85°C

Key Features

Intelligent Battery Protection

• •Overcharge & Undervoltage Monitoring – Prevents damage and maximizes battery life
• •Short Circuit & Overcurrent Safety – Built-in hardware-level auto cut-off
• •Passive Balancing – Helps maintain uniform voltage levels across all cells

High Load Capacity

• •Supports up to 30A continuous discharge
• •Ideal for high-demand systems like motors, inverters, and BESD setups

Plug-and-Play Design

• •Includes pre-installed connector for simplified installation
• •Well-labeled P+/P- terminals ensure error-free wiring
• •Compact and efficient for embedded designs

Applications

• •12.8V Solar Energy Storage Systems
• •E-Bike and E-Scooter Batteries
• •DIY Inverter Packs and Robotics
• •Emergency Backup Power Units
• •12V LED Light Systems and IoT Devices
• •Off-grid Battery Energy Storage Devices (BESD)
