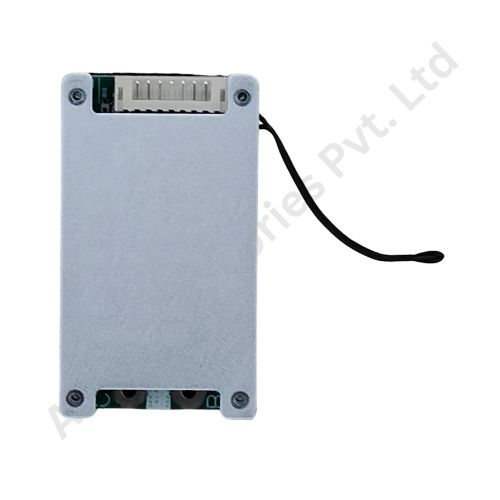

BMS LFP 8S 10A (TDT) (080d)

TDT BMS LFP 8S 10A Hardware

Product Data Sheet

The BMS LFP 8S 10A (TDT) is a robust and intelligent Battery Management System tailored for 8S LiFePO₄ (LFP) battery configurations. Operating at a nominal voltage of 25.6V and offering a continuous discharge current of 10A, this BMS ensures the safe and optimal performance of your lithium battery packs across a wide range of applications including solar storage, e-bikes, energy backup systems, and power tools.

Technical Specifications

• •Model TDT-8S-8181A 10A LFP
• •input Voltage B+ to B-: -0.3~+15V
• •Overcharge Detection voltage/1CELL: 3.65±0.05V
• •Over discharge Detection voltage/1CELL: 2.32±0.1V
• •Charge temperature protection 0°C~+50°C
• •Discharge temperature protection 65°C~+75°C

Key Features

• •Stable 10A Current Support: Ideal for moderate-drain devices and solar energy systems.
• •8S Cell Management: Supports 8-cell series for 25.6V LFP packs.
• •Advanced Cell Balancing: Maintains uniform cell voltage levels to extend battery life.
• •Comprehensive Protection: Defends against short-circuits, over-voltage, under-voltage, and overheating.
• •Metal Shield Casing: Offers strong EMI shielding and thermal management.
• •Easy to Integrate: Comes pre-wired with a standard JST connector for plug-and-play convenience.
• •Durable and Lightweight: Perfect fit for portable, rugged, and mission-critical deployments.

Ideal Applications

• •Solar Power Storage Units
• •Electric Scooters and E-Bikes
• •Emergency Lighting Packs
• •Robotics and Automation Devices
• •Portable Battery Boxes
• •UPS and IoT-Based Energy Grids

The PCM LFP 08S/10A SAME PORT (TDT) is a Battery Protection Circuit Module (PCM) designed for 8 series lithium iron phosphate (LiFePO4) battery packs, supporting a 10A continuous discharge current. This module is ideal for moderate power applications, such as energy storage systems, small electric vehicles, and backup power solutions. The PCM ensures safe battery operation by providing critical protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection. The SAME PORT design allows for efficient wiring by using a single port for multiple connections, simplifying installation and reducing space requirements. The TDT designation refers to the specific manufacturer or design.
