SLCT BMS LFP 8S 10A WITH BAL/CON

SLCT BMS LFP 8S 10AMP SAME PORT Hardware

Product Data Sheet

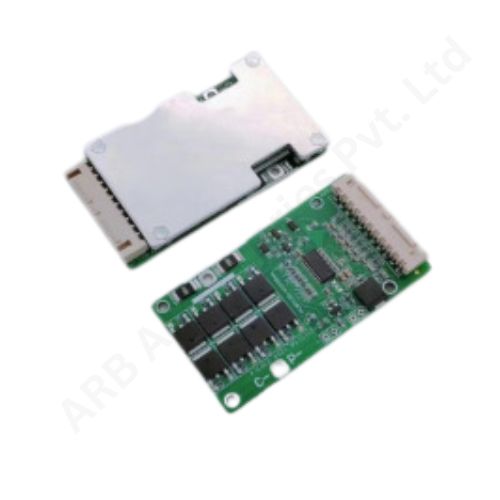

The BMS LFP 8S 10A (SLCT) is an intelligent and efficient Battery Management System (BMS), engineered specifically for 8-cell (8S) LiFePO₄ battery packs. Designed for up to 10A of continuous current, this BMS offers a perfect balance between performance, protection, and affordability, making it an ideal choice for small to medium power applications including battery energy storage devices (BESDs), solar backups, portable systems, and e-bikes.

Technical Specifications

• •This Data sheet is for Lichtronics 8S 10A LiFePo4 PCM/BMS
• •Charging Voltage - DC:14.4V CC/CV
• •Max continuous charging current - 10A
• •Over charge detection voltage - 3.65±0.05V
• •Over discharge detection voltage - 2.7±0.1V
• •Over current detection current - 10-16A
• •Operating Temperature- -45°C --+65°C
• •Storage Temperature- -45°C -- +85°C

Key Features

• •** Smart Cell Monitoring**: Actively monitors each of the 8 cells for accurate control.
• •** Balanced Charging**: Ensures all cells are equally charged for optimum performance.
• •** Safety Protections**: Built-in defense against over-voltage, overcurrent, and reverse polarity.
• •** Compact Design**: Perfect for tight enclosures or integrated systems.
• •** Plug-and-Play Compatibility**: Easily connects with standard 8S LiFePO₄ battery packs.
• •
  • •Durable Shielding**: Top-mounted metal shield enhances heat dissipation and board safety.

Applications

• •Home Solar Battery Banks
• •12V/24V Battery Energy Storage Devices (BESD)
• •DIY Powerwalls & Inverters
• •E-bikes, Scooters, Wheelchairs
• •Flashlight Arrays & Mobile Lighting Units
• •Field Tool Battery Packs

Why Choose This BMS?

If you're working on a compact energy system that demands reliable protection, accurate cell balancing, and long-term battery safety-SLCT’s 8S 10A BMS is the tool for the job. Its efficient layout, solid components, and smart protection logic make it a go-to solution for residential, mobile, and renewable battery applications.
