BMS NMC 03S20A WITHOUT NICKEL (85079090) (TDT) (bdb6)

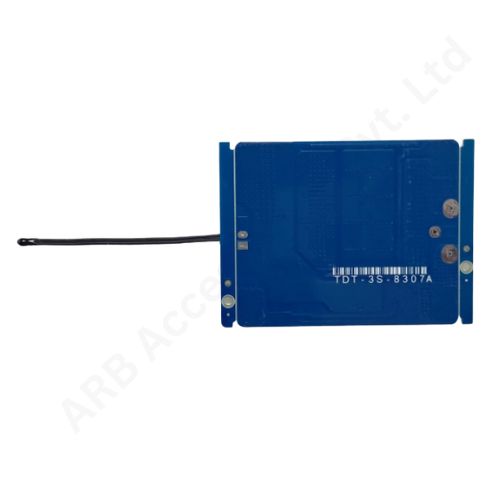

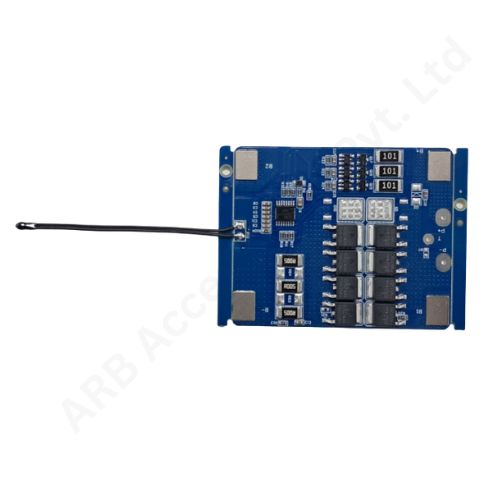

Small BMS NMC 3S 20A 8307 TDT PCB Hardware

Product Data Sheet

The BMS NMC 3S 20A 8307 TDT PCB is a high-efficiency Battery Management System designed to provide secure power handling for 3S lithium-ion battery packs. It supports a 20A constant discharge current and is engineered with advanced MOSFET protection, temperature control, and real-time battery health monitoring.

Technical Specifications

• •Capacity: Varies by model
• •Nominal Voltage: 11.1V (3S configuration)
• •Maximum Discharge Current: 20A
• •Chemistry: Nickel Manganese Cobalt (NMC) Lithium-Ion
• •Protection: Integrated PCB for overcharge, over-discharge, and short-circuit protection
• •Cycle Life: 500+ charge/discharge cycles
• •Applications: Power tools, electric vehicles, robotics
• •Performance: High energy density, stable power output, long lifespan, enhanced safety features

Key Features

• •** 20A Output Power:** Handles powerful current requirements for motorized systems, robotics, and backup batteries.
• •** Complete Protection Suite:** Equipped with overcurrent, overcharge, over-discharge, and short-circuit protection for ultimate safety.
• •** Intelligent Thermal Control:** Includes onboard NTC temperature sensor to avoid overheating and ensure battery pack longevity.
• •** Simplified Installation:** Compact and modular PCB for fast integration into standard battery compartments.
• •** BESD Certified:** Trusted and validated for high-performance use cases in energy-critical environments.

Applications

• •E-Bikes & E-Scooters
• •DIY Power Banks
• •Home Energy Storage (ESS)
• •Solar Charging Kits
• •Robotics & Embedded Systems
• •Industrial Lithium Battery Packs

The NMC 3S 20A 8307 TDT PCB is a high-capacity, high-power lithium-ion battery designed for demanding applications requiring significant energy output. With a nominal voltage of 11.1V (3S configuration) and a maximum continuous discharge current of 20A, it is ideal for high-performance devices like power tools, electric vehicles, and robotics. The battery features an integrated Protection Circuit Board (PCB) to ensure safety, preventing overcharging, over-discharging, and short circuits. Utilizing NMC (Nickel Manganese Cobalt) chemistry, it offers high energy density, long cycle life, and stable power performance, making it a reliable choice for energy-intensive applications requiring efficient and safe power storage.
