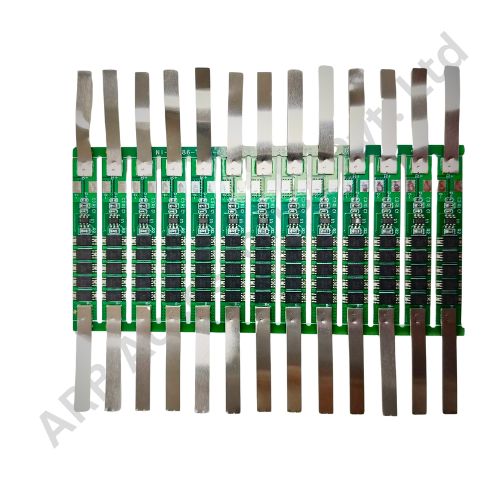

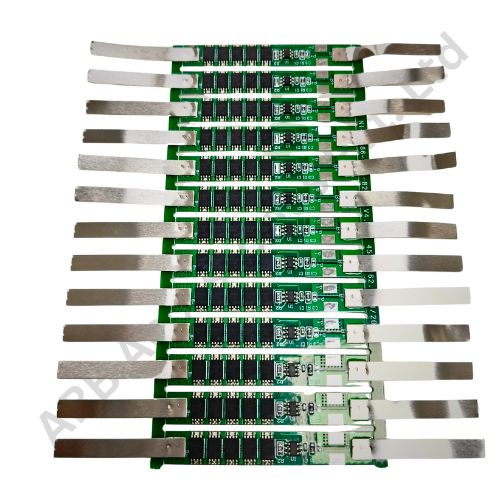

BMS NMC 1S 10A (SLCT) (7fd8)

SLCT BMS NMC 1S 10A Hardware

Product Data Sheet

The BMS NMC 1S 10A (SLCT) is a robust and compact battery management solution crafted for single-cell NMC (Nickel Manganese Cobalt) 3.7V lithium-ion batteries. Designed to offer advanced overcharge, over-discharge, and short-circuit protection, this BMS board ensures the safe and efficient operation of your battery packs in a wide range of applications.

Specifications

• •This Data sheet is for Lichtronics 1S 10A NMC PCM/BMS
• •Charging Voltage -DC:4.2V CC/CV
• •Max continuous charging current - 10A
• •Over charge detection voltage - 4.25±0.05V
• •Over discharge detection voltage - 3.0±0.1V
• •Over current detection voltage - 0.15±0.03V
• •Operating Temperature -45°C --+65°C
• •Storage Temperature -45°C -- +85°C

Key Features

• •1S BMS Design – Supports one Li-ion cell (3.7V nominal)
• •10A Discharge Capacity – Suitable for medium-load applications
• •Built-In MOSFET Protection – Intelligent circuit break during faults
• •High-Quality PCB Components – Ensures stability, thermal resistance & long life
• •Efficient Heat Dissipation – Low heat generation during high current discharge
• •Slim and Lightweight – Easy to integrate into compact projects or enclosures
• •Nickel Strip Tabs – Simplified welding or spot-welding to battery cells

Applications

• •Power Banks
• •LED Flashlights
• •Portable Radios
• •DIY Battery Packs
• •Bluetooth Speakers
• •Lab Testing Setups
• •Solar Energy Storage Units

Protection Features

• •Overcharge Protection – Prevents voltage above safe threshold
• •Over-discharge Protection – Shuts down below 2.5V
• •Short Circuit Protection – Cuts off load instantly
• •Overcurrent Detection – Ensures board safety under abnormal loads

The PCM NMC 01S 10A (SLCT) is a protection circuit module designed for 1-series lithium nickel manganese cobalt (NMC) batteries, with a continuous current rating of 10A. The "SLCT" indicates selectable or configurable protection settings, allowing customization based on specific needs. This PCM provides critical protection functions, such as overcharge, over-discharge, short-circuit, and overcurrent protection, ensuring the safe operation of the NMC battery. It is ideal for applications where a reliable and efficient battery management system is required, such as portable devices, smaller energy storage systems, and other low-power applications that rely on NMC batteries for energy storage and power delivery.
