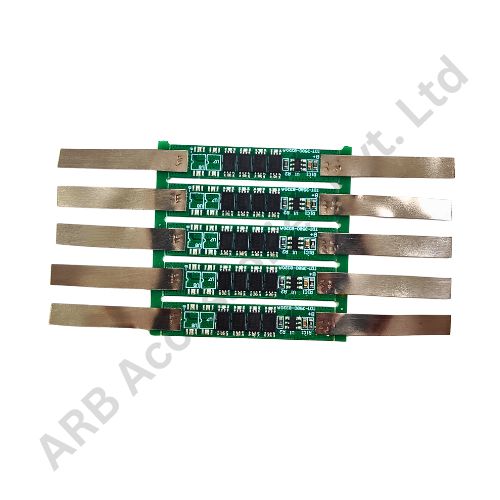

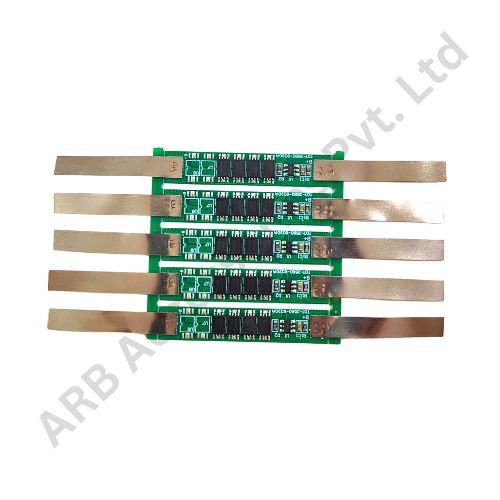

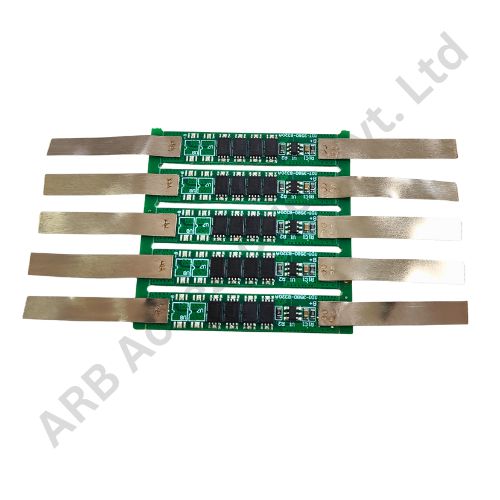

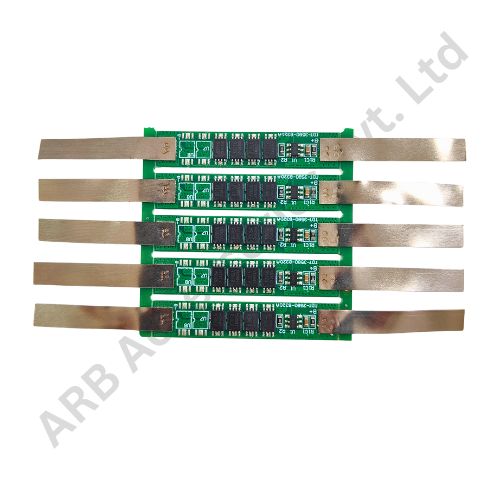

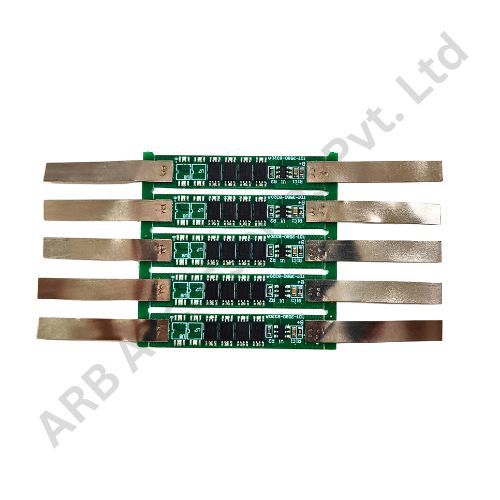

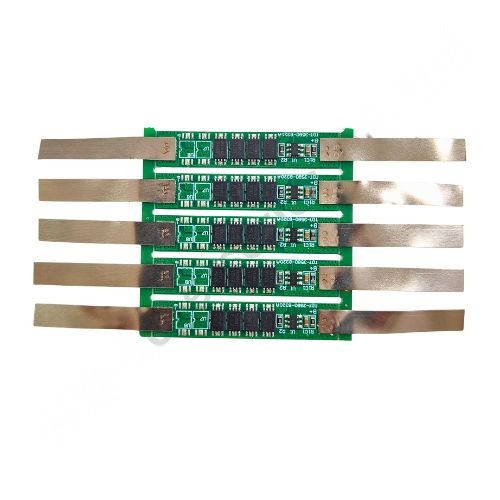

BMS NMC 1S 5A (TDT) (76bb)

TDT BMS NMC 1S 5A Hardware

Product Data Sheet

The BMS NMC 1S 5A (TDT) is a high-performance Battery Management System (BMS) engineered for single-cell lithium-ion (NMC) batteries. Designed for compact electronic devices and battery packs that require stable power delivery up to 5A continuous discharge, this unit provides vital safety protection, efficiency, and compact form factor.

Technical Specifications

• •Battery Type: NMC (Lithium Nickel Manganese Cobalt Oxide)
• •Continue current: 5A
• •Overcharge Detection voltage: 4.3±0.05V
• •Over discharge Detection voltage: 2.5±0.1V
• •Over current detection: 2~6A
• •Technology: BESD Compliant

Features & Benefits

• •Precision Over/Under Voltage Control: Extends battery health by ensuring optimal voltage operation.
• •Short-Circuit Protection: Prevents damage from accidental connections or high current spikes.
• •Easy to Assemble: Comes pre-attached with nickel strips, ideal for battery spot welding.
• •Compact Design: Slim profile fits easily in constrained or embedded power modules.
• •Eco-Friendly & Durable: Engineered to last long cycles, reducing electronic waste.

Applications

• •LED Lighting Systems
• •Power Banks & Mini UPS
• •Game Controllers & Portable Consoles
• •Cameras & Recording Devices
• •DIY Projects, RC Models, IoT Prototypes

The PCM NMC 01S/5A (TDT) is a Battery Protection Circuit Module (PCM) designed for 1 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 5A continuous discharge current. This module is suitable for low-power applications, such as small energy storage systems or backup power solutions. The PCM provides essential protection features, including overcharge, over-discharge, overcurrent, and short circuit protection, ensuring the safe operation of the battery. Additionally, the TDT designation indicates a specific manufacturer or design. The PCM helps maintain battery health by managing voltage levels and preventing imbalances between cells, optimizing battery performance and extending its lifespan.
