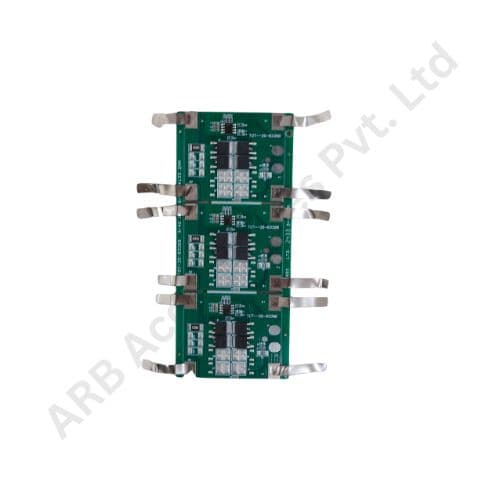

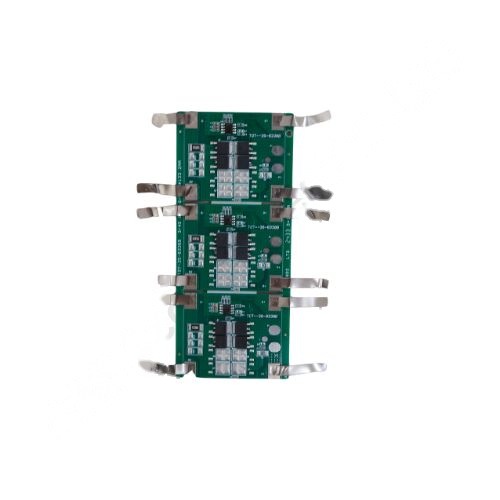

BMS NMC 3S 10A WITH NICKEL WITHOUT BAL (TDT) (0538)

TDT BMS NMC 3S 10A WITH NICKAL WITHOUT BAL Hardware

Product Data Sheet

The BMS NMC 3S 10A WITH NICKEL WITHOUT BAL (TDT) is a robust and efficient Battery Management System designed to protect and control 11.1V (3S) lithium-ion NMC battery packs. It offers solid safety performance in a lightweight and compact form, perfect for mid-current applications such as robotics, handheld devices, lighting, and general electronics.

Technical Specifications

• •Battery Type: 3S Li-ion NMC (Nominal 11.1V)
• •input Voltage B+ to B-: -0.3~+20V
• •Overcharge Detection voltage/1CELL: 4.28±0.05V
• •Over discharge Detection voltage/1CELL: 2.8±0.1V
• •Over current: 10-20A
• •Suggest working temperature: -20°C~+60°C

Key Features

• •

  Ready with Nickel Strip Enables easy integration into battery packs with laser/spot-welding setup. Ideal for production environments.

• •

  No Balancing Circuit Designed for systems where balancing is externally managed, simplifying the circuit and reducing cost.

• •

  Comprehensive Safety Equipped with overcharge, overdischarge, short-circuit, and overcurrent protections for full pack safety.

• •

  10A Discharge Capability Supports reliable output for devices and tools demanding moderate continuous current without compromising safety.

• •

  BESD Certified Built on the BESD principles: providing efficient, safe, and long-lasting battery protection.

Applications

This BMS is suitable for a variety of applications, such as:

• •DIY 3S Li-ion battery packs
• •Emergency lighting and backup units
• •Power banks and portable electronics
• •Hobbyist robotics and RC vehicles
• •Electric bicycle battery packs (low to moderate range)

The PCM NMC 03S 10A WITH BALANCE (TDT) is a Battery Protection Circuit Module (PCM) designed for 3 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 10A continuous discharge current. This module is ideal for moderate to high-power applications such as energy storage systems, small electric vehicles, and backup power solutions. It provides crucial protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe operation of the battery. The WITH BALANCE feature ensures that the cells are balanced, optimizing performance and extending battery life. The TDT designation refers to a specific manufacturer or design, guaranteeing reliable and efficient battery management.
