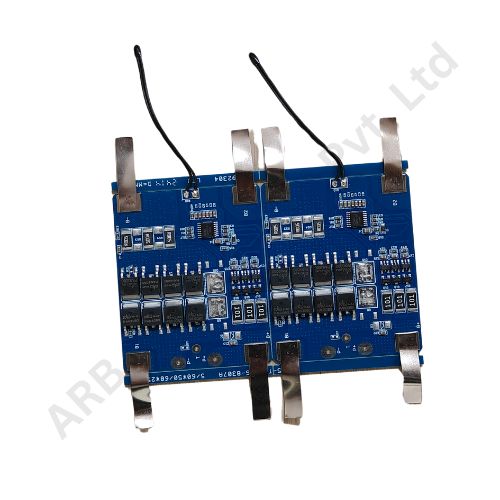

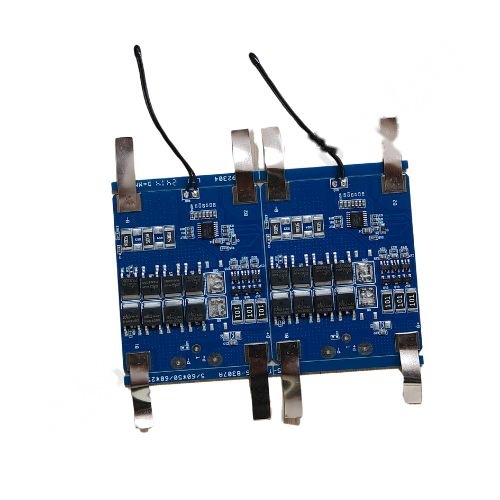

BMS NMC 3S 20A WITH NICKEL (TDT) (0655)

TDT BMS NMC 3S 20A WITH NICKAL Hardware

Product Data Sheet

The BMS NMC 3S 20A WITH NICKEL (TDT) is a premium-quality Battery Management System engineered for high-performance lithium-ion battery packs. Tailored for a 3S (3 Series) configuration, it is capable of delivering a robust 20A discharge current, making it suitable for heavy-load devices including e-bikes, UPS systems, power walls, and DIY energy storage setups.

Technical Specifications

• •Model: TDT-3S-8085 20A NMC
• •input Voltage B+ to B-: -0.3~+20V
• •Overcharge Detection voltage/1CELL: 4.28±0.05V
• •Over discharge Detection voltage/1CELL: 2.8±0.1V
• •Over current: 4-6A
• •Suggest working temperature: -20°C~+60°C

Key Features

• •** High Current Capacity:** With 20A handling, this BMS is ideal for energy-demanding applications like motor controllers and inverters.
• •** Nickel Welded Ease:** Factory-attached nickel strips reduce installation complexity, enhance current conductivity, and improve mechanical strength.
• •** Intelligent Safety Control:** Offers multi-level protection against charging/discharging anomalies and physical damage.
• •** Dual Temperature Sensors:** Built-in thermistors for efficient thermal protection, preventing pack overheating.
• •** Versatile Compatibility:** Compatible with cylindrical (18650/21700) and pouch cell-based packs.

Applications

This BMS is suitable for:

• •E-Bikes & Electric Scooters
• •Solar Inverters & Power Walls
• •Industrial Battery Packs
• •DIY Power Storage Systems
• •Robotics and Automation Projects

The PCM NMC 03S 20A WITH NICKEL (TDT) is a Battery Protection Circuit Module (PCM) designed for 3 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 20A continuous discharge current. This module is ideal for high-power applications such as energy storage systems, electric vehicles, and backup power solutions. It provides essential protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe operation of the battery. The WITH NICKEL designation indicates the use of nickel in the battery chemistry for improved performance. The TDT designation refers to a specific manufacturer or design, ensuring reliable and efficient battery management.
