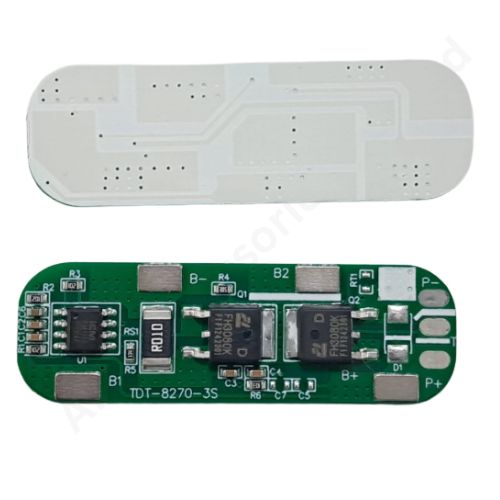

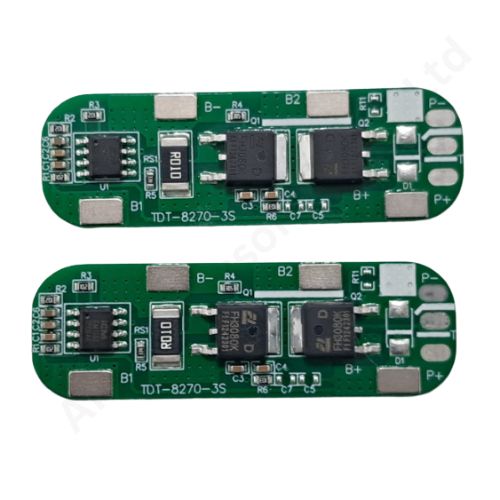

BMS NMC 3S 5A TDT (058b)

TDT BMS NMC 3S 5A Hardware

Product Data Sheet

The BMS NMC 3S 5A (TDT) is a high-performance Battery Management System engineered for use with 11.1V (3S) lithium-ion NMC battery packs. Whether you're designing a compact energy solution for robotics, power tools, or industrial sensors, this BMS ensures unmatched protection and energy balance across all cells.

Technical Specifications

• •Capacity: Varies by model
• •Nominal Voltage: 11.1V (3S configuration)
• •Maximum Discharge Current: 6A
• •Chemistry: Nickel Manganese Cobalt (NMC) Lithium-Ion
• •Protection: Integrated PCB for overcharge, over-discharge, and short-circuit protection
• •Cycle Life: 500+ charge/discharge cycles
• •Applications: Power tools, robotics, electric vehicles
• •Performance: High energy density, stable power output, long lifespan, enhanced safety features

Key Features

• •Smart Multi-level Protection: Automatically balances and protects all three cells.
• •5A Discharge Power: Supports a variety of medium-current applications with stable output.
• •Compact PCB Design: Perfect for embedded or space-constrained applications.
• •Plug-n-Play Integration: Designed for easy installation into your battery design.
• •BESD Compliant: Adheres to rigorous standards of efficiency, safety, and durability.

Ideal Applications

• •Portable Power Banks (Medium Range)
• •IoT & Wireless Communication Devices
• •DIY E-Bike and RC Projects
• •LED Lighting Systems
• •3S Tool Packs and Home Automation Kits
• •Solar-Charged Backup Units

The NMC 3S 6A PCB TDT is a high-capacity lithium-ion battery designed for medium-to-high power applications, offering a nominal voltage of 11.1V (3S configuration). It provides a continuous discharge current of 6A, making it ideal for power-intensive devices such as power tools, robotics, and electric vehicles. The integrated Protection Circuit Board (PCB) ensures safety by protecting against overcharging, over-discharging, and short circuits, extending the battery’s lifespan and enhancing its reliability. Utilizing NMC (Nickel Manganese Cobalt) chemistry, it delivers high energy density, long cycle life, and stable performance, ensuring dependable and efficient power for demanding applications.
