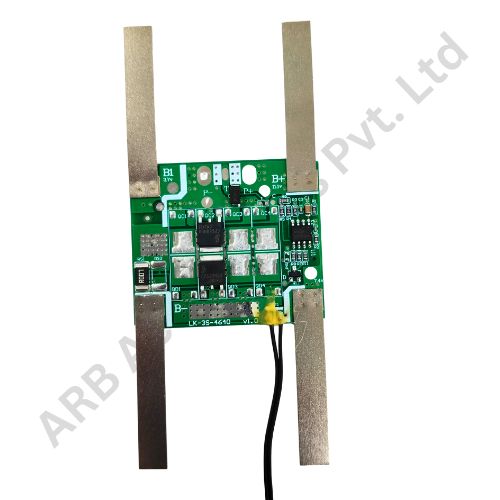

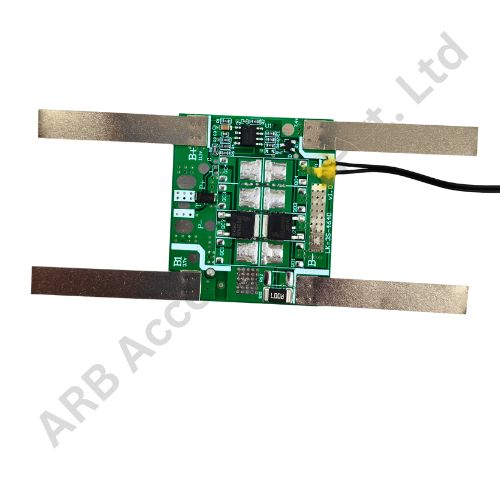

SLCT BMS NMC 3S 6A W/O BAL

SLCT BMS NMC 3S 6A WITH NICKAL WITHOUT BAL Hardware

Product Data Sheet

The BMS NMC 3S 6A (SLCT) is an efficient and compact Battery Management System built to protect 3-cell 11.1V lithium-ion battery packs. Designed with safety, performance, and ease of use in mind, this BMS offers multiple levels of protection including overcharge, over-discharge, overcurrent, and short-circuit defense.

Technical Specifications

• •This Data sheet is for Lichtronics 3S 6A NMC PCM/BMS
• •Charging Voltage -DC:12.6V CC/CV
• •Max continuous charging current - 6A
• •Over charge detection voltage - 4.25±0.05V
• •Over discharge detection voltage - 2.7±0.08V
• •Over current detection voltage - 0.1±0.03V
• •Operating Temperature -45°C --+65°C
• •Storage Temperature -45°C -- +85°C

Key Features

• •

  3S Support (11.1V) - Compatible with 3 x 3.7V lithium-ion NMC cells

• •

  Multi-Layered Protection - Safeguards against:

• •

  Overcharging

• •

  Over-discharging

• •

  Overcurrent events

• •

  Short circuits

• •

  Balanced Discharge - Enhances longevity and capacity retention

• •

  Integrated Nickel Strips - Easy spot-weld or solder integration

• •

  Slim & Lightweight - Perfect for compact and portable builds

• •

  Auto Recovery - Resumes operation after safety trigger events

Applications

• •Portable Lighting Systems
• •Drone Battery Packs
• •DIY RC Car Power Packs
• •18650-based Power Banks
• •IoT Devices, Modules & Controllers
• •Robotics & Embedded Systems Projects

The PCM NMC 03S 6A WITH NICKEL (SLCT) is a protection circuit module designed for 3-series lithium nickel manganese cobalt (NMC) batteries, with a continuous current rating of 6A. The "WITH NICKEL" likely refers to the use of nickel-plated connectors or components, which help improve the module’s conductivity and durability. The "SLCT" feature indicates selectable or adjustable protection settings, allowing users to tailor the module’s functionality for specific needs. This PCM provides essential battery protection, including overcharge, over-discharge, short-circuit, and overcurrent protection, ensuring the safety and efficient operation of the NMC battery. It is typically used in medium-power applications such as energy storage systems, electric vehicles, and other devices that require reliable battery management and protection.
