BMS NMC 3S 6A WITH NICKEL WITH BALANCE(TDT) (72e2)

TDT BMS NMC 3S 6A WITH NICKAL WITHOUT BAL Hardware

Product Data Sheet

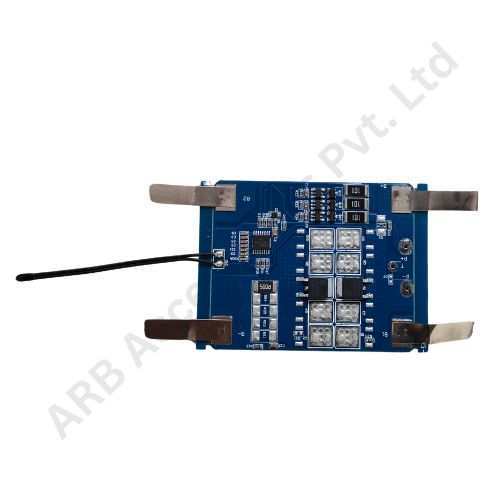

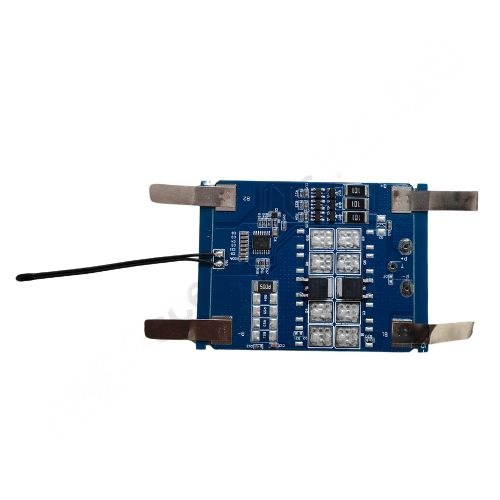

The BMS NMC 3S 6A WITH NICKEL WITH BALANCE (TDT) is a high-performance Battery Management System (BMS) engineered specifically for 11.1V (3S) NMC lithium-ion battery packs. This smart protection board ensures each individual cell within the pack maintains optimum health and performance thanks to its integrated balancing circuitry.

Technical Specifications

• •Battery Type: Li-ion NMC 3S (11.1V nominal)
• •input Voltage B+ to B-: -0.3~+20V
• •Overcharge Detection voltage/1CELL: 4.28±0.05V
• •Over discharge Detection voltage/1CELL: 2.8±0.1V
• •Over current: 6-10A
• •Suggest working temperature: -20°C~+60°C

Key Benefits

• •

  Active Cell Balancing: Maintains voltage consistency across all 3 cells during charge and discharge cycles, increasing battery life.

• •

  6A Output Current Support: Suitable for moderate power loads in portable and embedded systems.

• •

  Pre-Soldered Nickel Strips: Eliminates manual wiring – optimized for rapid battery pack production or maintenance.

• •

  Advanced Circuit Protection: Prevents battery damage from overcharging, over-discharging, short circuits, and excessive current draw.

• •

  BESD Standard Approved: Adheres to ARB’s Built Efficiency, Safety & Durability principles ensuring professional reliability.

Applications

Ideal for compact to medium power battery systems across sectors like:

• •DIY Lithium-ion Packs
• •LED Lighting Systems
• •Backup & Energy Storage
• •Model Vehicles, Robotics
• •Portable Power Tools
• •Electric Bicycle Projects

The PCM NMC 03S 6A WITH NICKAL WITH BAL (TDT) is a Battery Protection Circuit Module (PCM) designed for 3 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 6A continuous discharge current. This module is ideal for moderate power applications such as energy storage systems, backup power solutions, and small electric vehicles. It provides essential protection features including overcharge, over-discharge, overcurrent, short circuit, and temperature protection for safe battery operation. The WITH BAL feature ensures cell balancing, maintaining consistent voltage across all cells for optimal performance. The TDT designation indicates a specific manufacturer or design, ensuring reliable battery management.
