BMS NMC 6S 10A (TDT) (115d)

TDT BMS NMC 6S 10A Hardware

Product Data Sheet

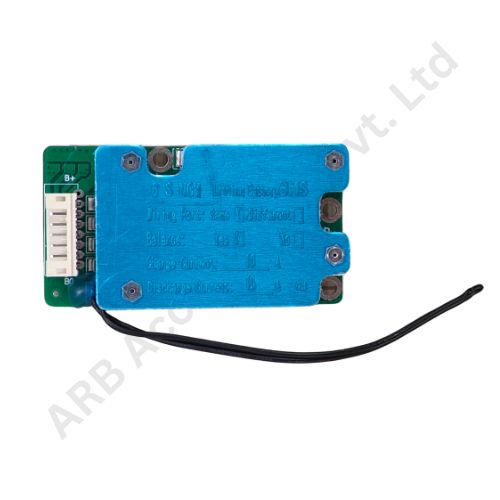

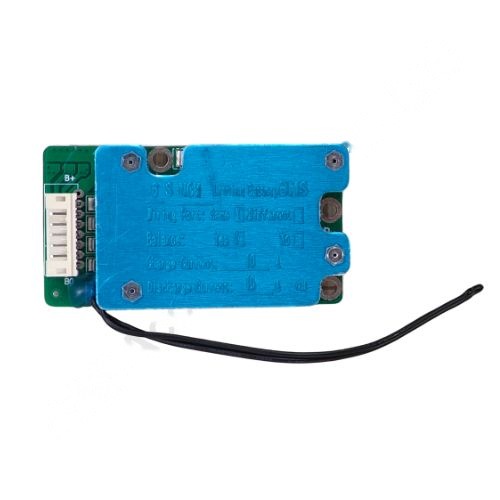

The BMS NMC 6S 10A (TDT) is a high-efficiency Battery Management System designed for 6-cell lithium-ion (NMC) battery packs rated at 22.2V. It supports charging and discharging up to 10A, offering robust protection and intelligent cell monitoring for demanding applications such as e-bikes, DIY energy storage systems, robotics, and more.

Technical Specifications

• •Model: 6S 10A TDT
• •input Voltage B+ to B-: -0.3~+20V
• •Overcharge Detection voltage/1CELL: 4.28±0.05V
• •Over discharge Detection voltage/1CELL: 2.8±0.1V
• •Over current: 4-6A
• •Suggest working temperature: -20°C~+60°C

Key Features

• •

  Dual 10A Channels Manages both charging and discharging currents up to 10A, ideal for medium-drain applications.

• •

  Integrated Balancing Circuit Balances each cell during charging, preventing over-voltage damage and ensuring long cycle life.

• •

  Multi-Layer PCB Construction High-grade materials for efficient current flow and heat dissipation with nickel strip soldering support.

• •

  Multiple Safety Protections Includes over-voltage, under-voltage, short-circuit, over-current, and temperature protections.

• •

  Plug-and-Play with JST Connector Simplifies installation and allows modular integration into battery casing.

Applications

• •Electric Bicycles and E-Mobility
• •DIY Battery Pack Builders
• •Energy Storage Systems (ESS)
• •Power Tools and Robotics Projects
• •Portable Solar Battery Banks

The PCM NMC 6S 10A SAME PORT (TDT) is a Battery Protection Circuit Module (PCM) designed for 6 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 10A continuous discharge current. This module is suitable for moderate-power applications, including energy storage systems, backup power solutions, and small electric vehicles. It features same port design, meaning the protection circuit and balancing functions are integrated into a single port for ease of use. The PCM provides essential protection features such as overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring safe and efficient battery operation. The TDT designation indicates the specific manufacturer or design.
