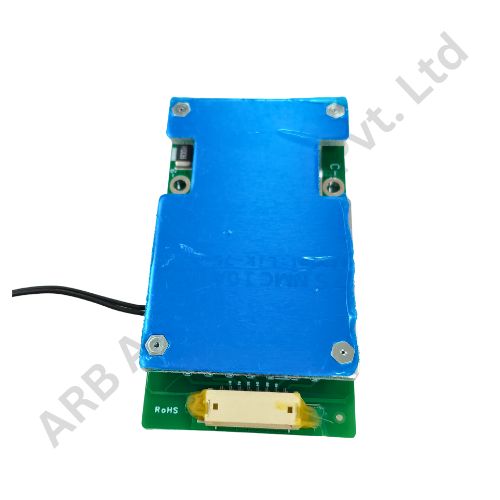

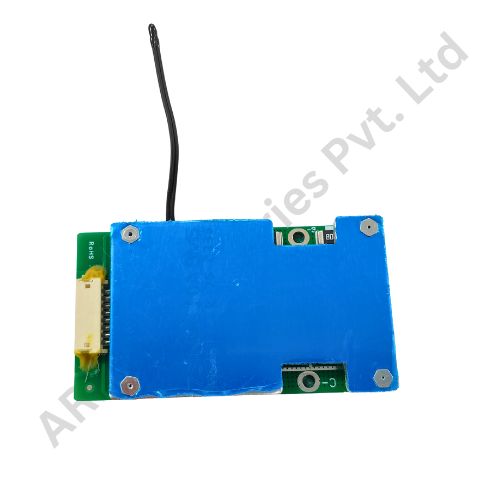

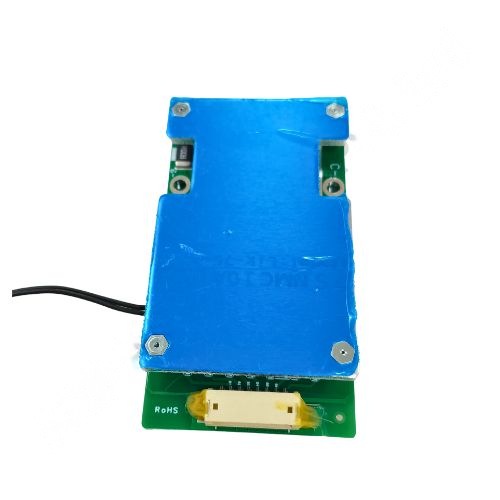

BMS NMC 7S 10A (SLCT) (7fde)

SLCT BMS NMC 7S 10A Hardware

Product Data Sheet

The BMS NMC 7S 10A (SLCT) is a precision-engineered Battery Management System specifically designed for 25.9V NMC (Nickel Manganese Cobalt) lithium-ion battery packs. Offering the essential balance of safety, efficiency, and intelligent control, this BMS safeguards your battery investment from hazardous conditions and ensures optimal performance.

Technical Specifications

• •This Data sheet is for Lichtronics 7S10A NMC PCM/BMS
• •Charging Voltage -DC:29.4-30V CC/CV
• •Max continuous charging current - 10A
• •Over charge detection voltage - 4.25±0.05V
• •Over discharge detection voltage - 2.8±0.08V
• •Over current detection current - 20A
• •Operating Temperature -45°C --+65°C
• •Storage Temperature -45°C -- +85°C

Key Features

• •

  Optimized for 7S (25.9V) NMC Packs

• •

  10A Continuous Discharge Current

• •

  Smart Protection Circuitry:

• •

  Overcharge protection

• •

  Over-discharge protection

• •

  Overcurrent safeguard

• •

  Short-circuit auto shutdown

• •

  Auto Recovery Feature – System resets after fault clearance

• •

  Passive Cell Balancing – Uniform voltage levels across cells

• •

  Thermal Safety Measures – Overheating detection and shut-off

• •

  Durable PCB Design – Sturdy construction with precision layout

• •

  Connector Port – For streamlined battery integration

Applications

• •Electric Bicycles & Scooters
• •Solar Lighting & Panels
• •DIY Power Walls & Battery Banks
• •LED Emergency Systems
• •Battery Replacements for RC, Drones, and Tools

The BMS NMC 7S 10A (SLCT) is a Battery Management System (BMS) designed for lithium nickel manganese cobalt (NMC) battery packs. It is configured for a 7-series (7S) lithium-ion battery configuration, providing protection and monitoring for each cell in the pack. With a current rating of 10A, the system ensures the safe operation of the battery by managing charge and discharge cycles, protecting against over-voltage, under-voltage, and over-current conditions. The SLCT feature may refer to the selectable or switchable settings, which allow for customization according to specific battery requirements. The system enhances the overall safety and longevity of the battery pack.
