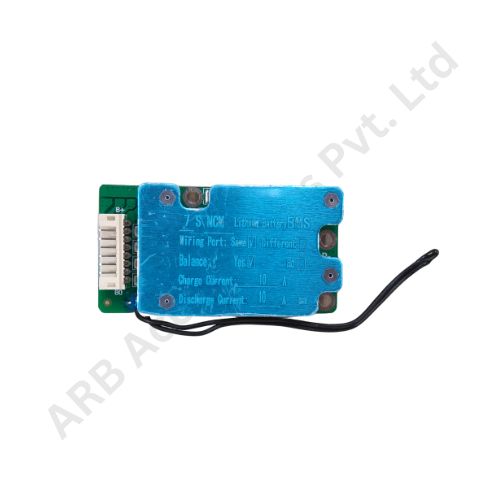

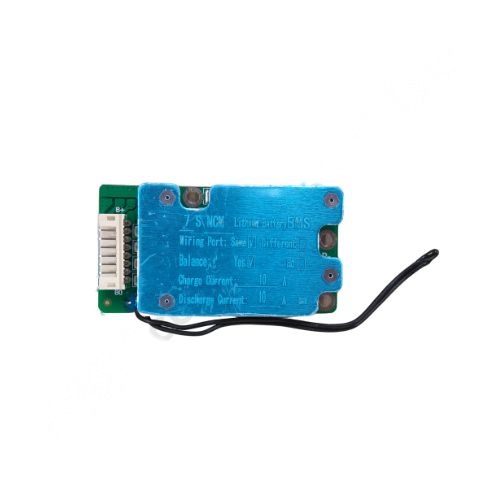

BMS NMC 7S 10A (TDT) (11d3)

TDT BMS NMC 7S 10A Hardware

Product Data Sheet

The BMS NMC 7S 10A (TDT) is an advanced Battery Management System specifically designed for 7-series lithium-ion (NMC) battery packs. With a nominal voltage of 25.9V and a maximum continuous current of 10A, this BMS ensures efficient, safe, and reliable battery operation across a wide range of applications.

Technical Specifications

• •Model: TDT-7S-10A
• •input Voltage B+ to B-: -0.3~+20V
• •Overcharge Detection voltage/1CELL: 4.28±0.05V
• •Over discharge Detection voltage/1CELL: 2.8±0.1V
• •Over current: 4-6A
• •Suggest working temperature: -20°C~+60°C

Key Features

• •

  Powerful 10A Continuous Current Handling Ensures smooth energy flow for applications requiring moderate power.

• •

  Advanced Cell Balancing Automatically equalizes voltage between cells to extend battery life and improve efficiency.

• •

  Integrated Safety Protections Shields the battery from overcharging, over-discharging, short circuits, and excessive current.

• •

  Compact & Efficient Design Slim form factor with clearly marked terminals and pre-soldered nickel strips or ports.

• •

  TDT Grade Reliability Trusted for long operational life, thermal stability, and low leakage current.

Applications

• •Electric Bicycles and Scooters
• •DIY Battery Packs & Solar ESS
• •Cordless Tools & Robotics
• •Solar Light Batteries
• •Electric Mobility Vehicles

The PCM NMC 07S 10A SAME PORT (TDT) is a Battery Protection Circuit Module (PCM) designed for 7 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 10A continuous discharge current. This module is suitable for moderate-power applications, including energy storage systems, backup power solutions, and portable devices. The same port design integrates both the protection and cell balancing functions into a single port, streamlining the setup and enhancing convenience. The PCM offers essential protection features, such as overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe and reliable operation of the battery. The TDT designation refers to a specific manufacturer or design.
