BATTERY CAPACITY TESTER (YPSDZ-0550-4) (b7fe)
Minimum Quantity: 1 PCS
Product Description

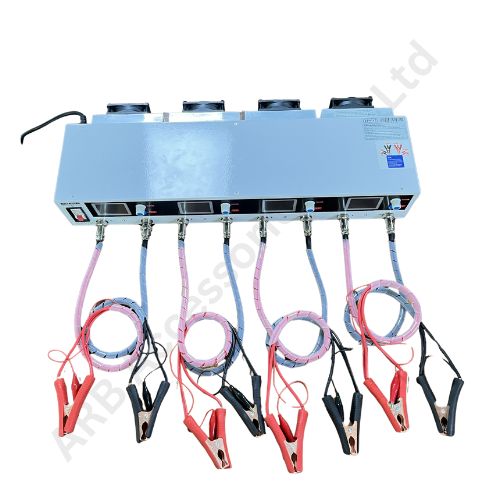

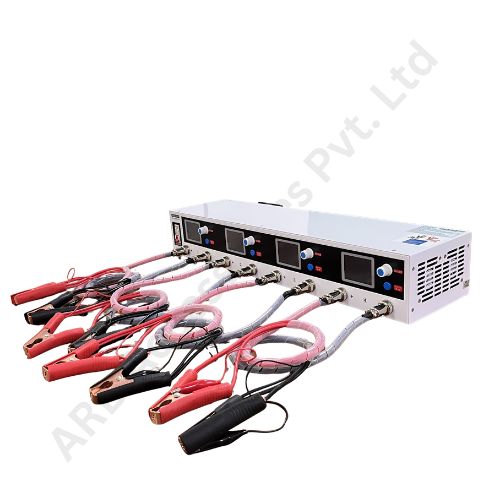

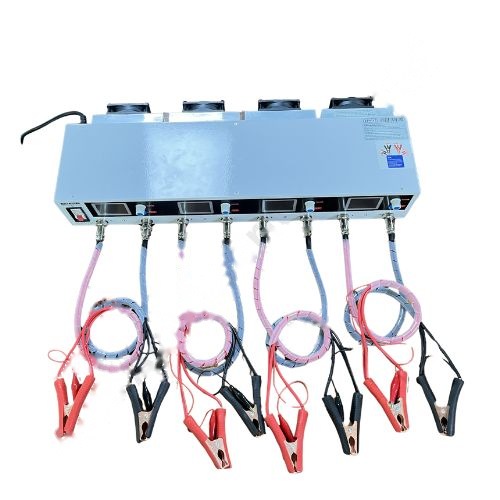

BATTERY CAPACITY TESTER (YPSDZ-0550-4)
The YPSDZ-0550-4 Battery Capacity Tester is an advanced, multi-channel, industrial-grade battery capacity analyzer. Built for professional testing environments, this tester evaluates battery packs up to 55V with up to 50A discharge current capacity per channel. It offers four fully independent testing channels, allowing simultaneous and accurate testing of multiple battery packs under different load conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | YPSDZ-0550-4 |
| Number of Channels | 4 (Independent operation) |
| Voltage Range | 0.3-5V |
| Max Current per Channel | 50 Amps |
| Display Type | Digital LCD (4 units, one per channel) |
| Measurement Parameters | Voltage, Current, Discharge Time, Capacity (Ah, Wh) |
| Data Output | Digital display, manual recording |
| Input Power | AC200-240V |
| Discharge Type | Constant current electronic load |
| Safety | Over-voltage, Over-current, Short-circuit protection |
| Ports | Heavy-duty alligator clamps (red & black) |
Key Features
- •
4-Channel Testing Test up to four different batteries independently, each with configurable current and voltage.
- •
High Precision Measurement Accurately measure actual capacity in Ah and Wh to detect battery health and performance.
- •

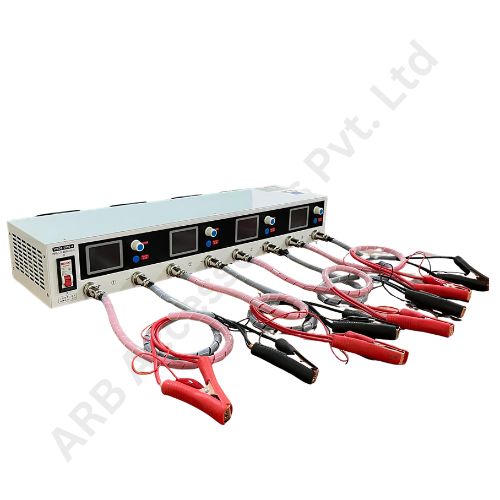

Heavy-Duty Load Clamps Comes with thick, robust red/black cable clamps suitable for EV batteries and industrial battery banks.
- •
Advanced Protection Circuits Built-in protections for overcurrent, overvoltage, reverse polarity, and thermal overload.
- •

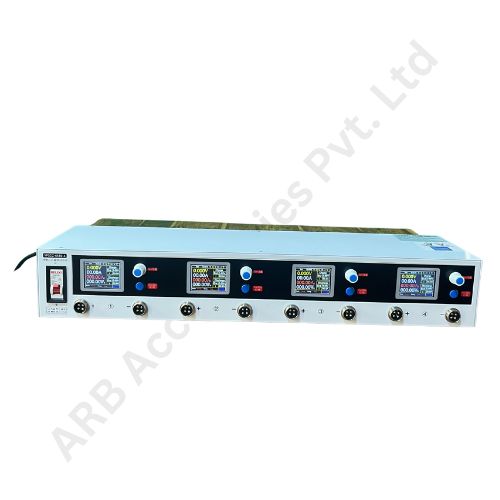

Real-Time Digital Monitoring Each channel has its own LCD panel showing live voltage, current, time, and capacity values.
- •
Versatile Compatibility Supports 12V, 24V, 36V, and 48V battery configurations across LFP, NMC, SLA, and NiMH chemistries.
Applications
- •Battery Maintenance and Grading
- •E-bike, E-scooter, and EV Pack Testing
- •Lithium-Ion and LFP Battery Performance Analysis
- •R&D Lab Testing Environments
- •Battery Quality Assurance for Manufacturers
- •Service Centers and Tech Workshops
Key Features
- •Premium Quality
- •Reliable Performance
- •Long Service Life
- •Certified Standards
Technical Specifications
- Model
- b7fe
- Product Name
- BATTERY CAPACITY TESTER (YPSDZ-0550-4) (b7fe)
Applications
- •Battery Packs
- •Energy Storage
- •Power Systems
