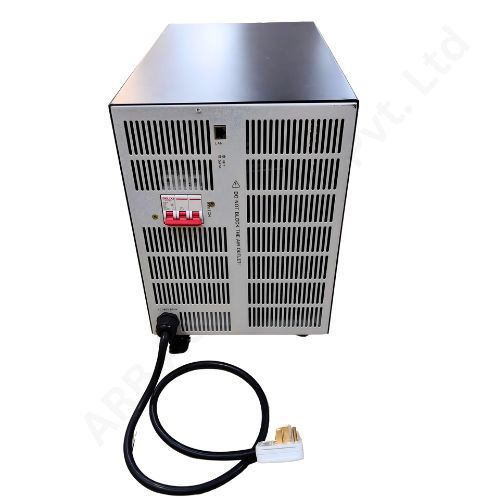

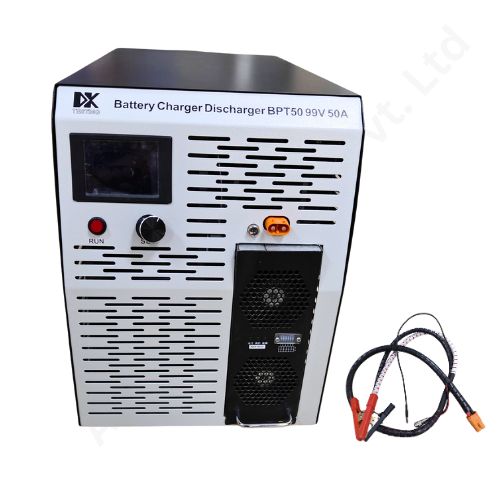

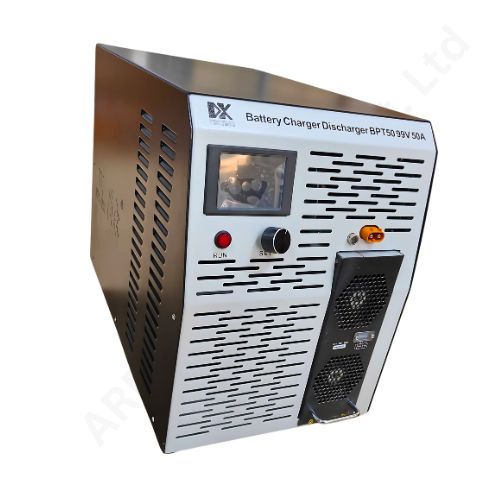

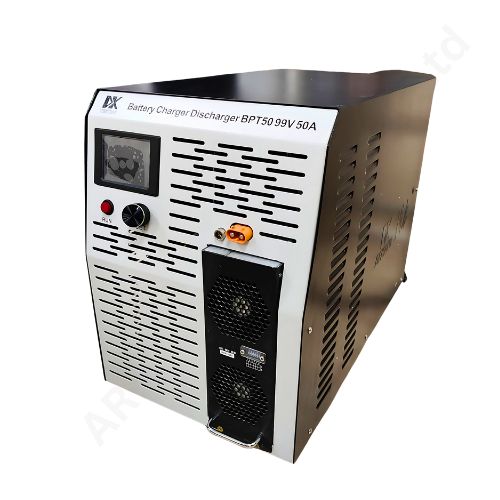

BATTERY TESTERS DK-BPT50 99V50A (b37c)

DK-BPT50 99V 50A Battery Tester – High-Voltage Multi-Channel Charge/Discharge Analyzer

Product Data Sheet

The DK-BPT50 is a high-voltage, multi-channel battery tester designed for comprehensive analysis and maintenance of various battery types, including lithium-ion, lead-acid, and other advanced battery chemistries. With capabilities to handle voltages up to 99V and currents up to 50A, this tester is ideal for applications in electric vehicle (EV) battery diagnostics, large-scale battery pack assembly, and research and development.

Key Features

• •Voltage Range: Up to 99V
• •Current Output: Up to 50A per channel
• •Channel Count: Multiple independent channels (exact number to be confirmed)
• •Battery Compatibility: Supports Li-ion, Polymer, NiMH, NiCd, and Lead-acid batteries
• •Operation Method: Online
• •Communication Port: LAN (TCP/IP protocol)
• •Input Power: AC 200V–245V, 50Hz/60Hz

Advanced Functionalities

• •Capacity Testing: Accurately measures the capacity of battery modules.
• •Charge/Discharge Characteristics: Analyzes charging and discharging behaviors.
• •Auto Cycle Charge-Discharge: Supports automated cycling for battery conditioning.
• •Balance Maintenance: Performs active and passive balancing to restore unbalanced battery packs.
• •Data Grading & Matching: Classifies and matches cells based on performance metrics.
• •Internal Resistance Testing: Measures the internal resistance of battery cells.
• •Temperature Monitoring: Monitors battery temperature with alarms and work step adjustments.
• •Data Analysis: Provides detailed analysis with multi-axis curve plotting.

Safety and Protection

• •Power-down Protection: Ensures data integrity during unexpected power losses.
• •Reverse Connection Protection: Prevents damage due to incorrect polarity connections.
• •Over-temperature Protection: Monitors and controls temperature to prevent overheating.
• •Over-voltage Protection: Safeguards against voltage spikes.
• •Short-circuit Protection: Protects the device and batteries from short circuits.

Software and Data Management

• •User Interface: Intuitive software interface compatible with Windows operating systems.
• •Data Recording: Records data at specified intervals for voltage, current, and capacity.
• •Report Generation: Exports test reports in Excel format for easy analysis.
• •Server Requirements: Requires a server with sufficient disk space for data storage.

Applications

• •Battery Testing: Ideal for testing individual cells or full battery packs.
• •Maintenance: Useful in maintaining and repairing EV battery packs.
• •Production: Supports battery pack assembly and quality control processes.
• •Research and Development: Facilitates in-depth analysis for battery R&D.
