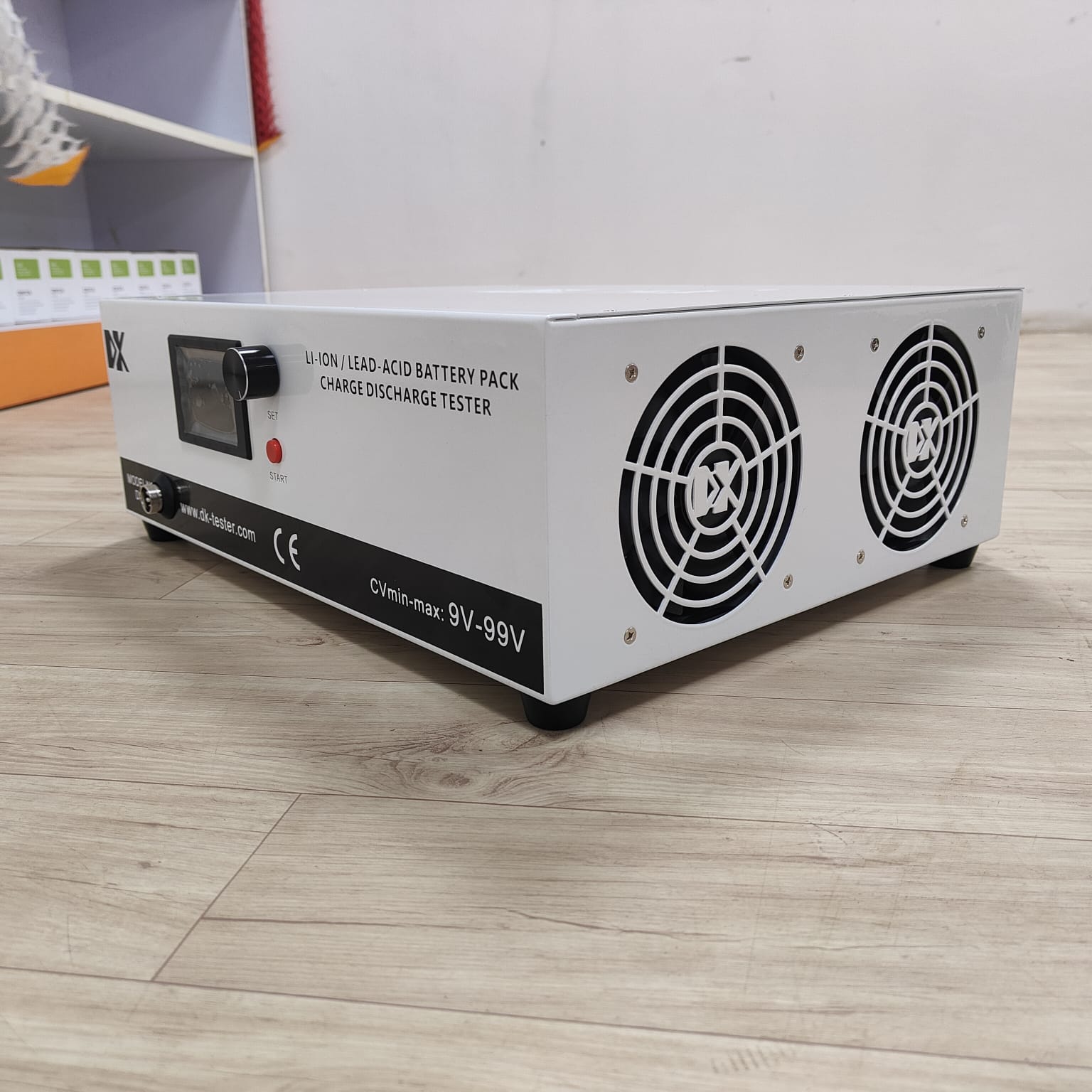

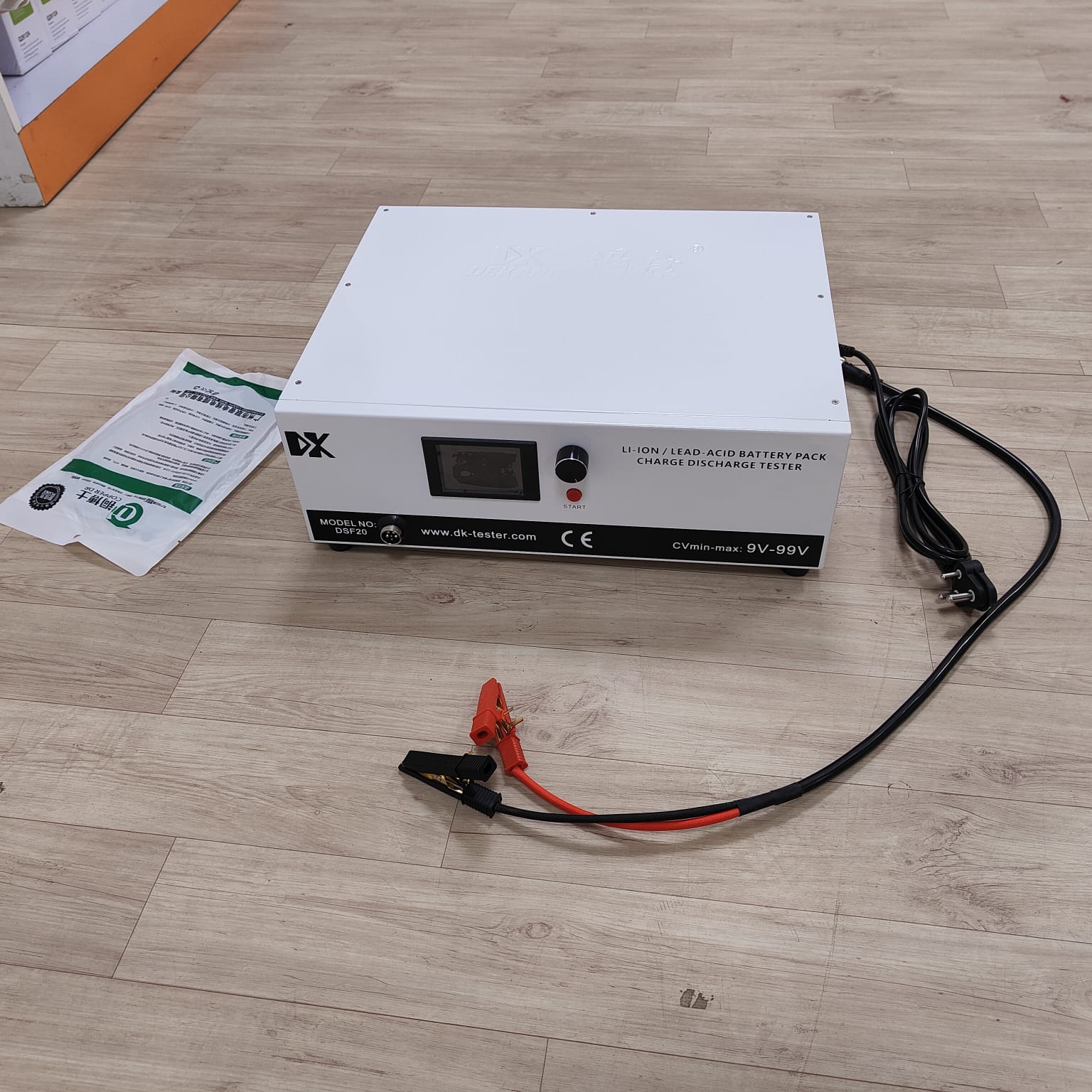

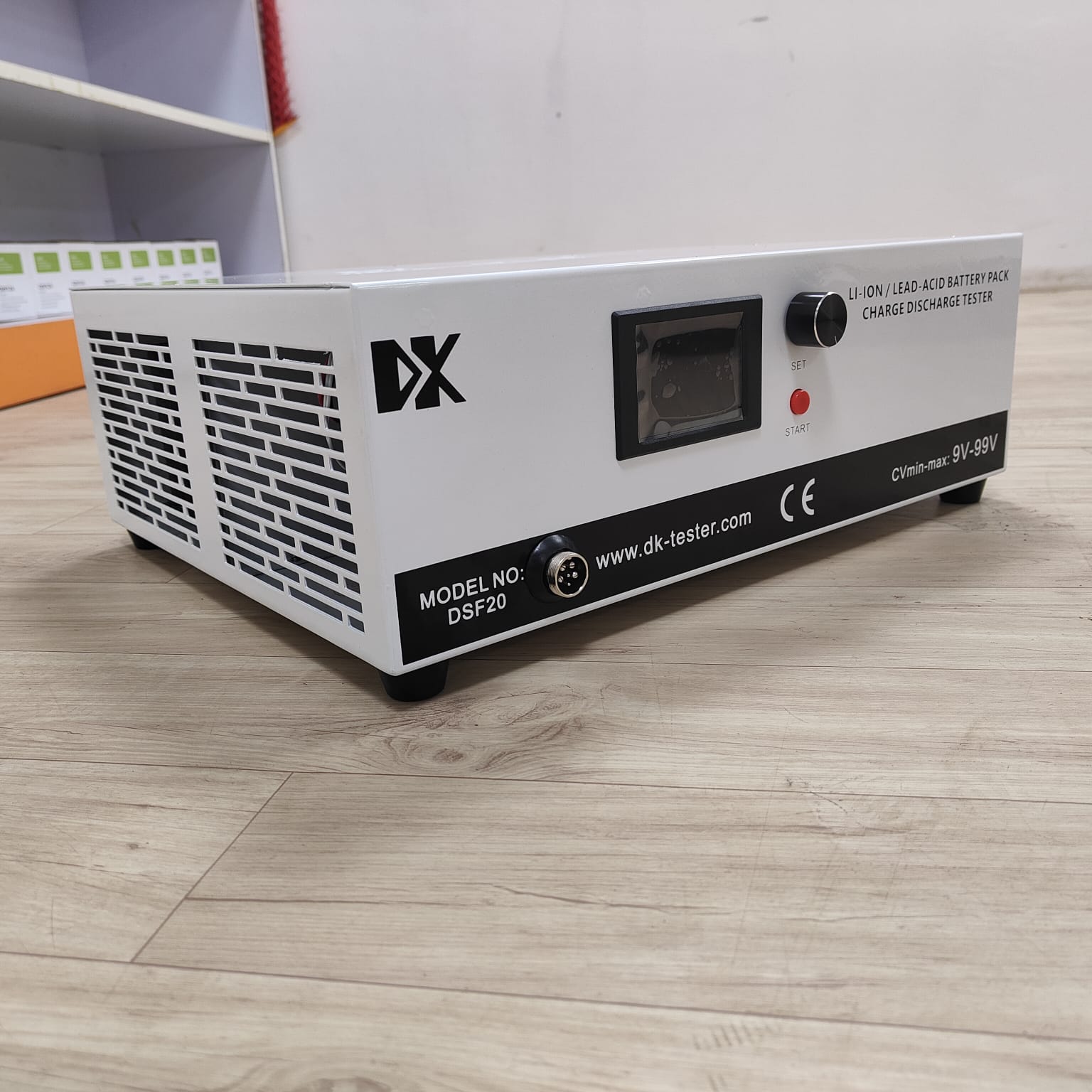

LITHIUM BATTERY PACK TEST MACHINE (9-99V/10-20A) (DSF20)

Product Data Sheet

The Lithium Battery Pack Test Machine (9-99V/10-20A) (DSF20) is a versatile and reliable device designed for testing lithium battery packs within a voltage range of 9V to 99V and a current range of 10A to 20A. It is ideal for evaluating the performance, capacity, and efficiency of lithium-ion battery packs used in electric vehicles, renewable energy systems, and other high-power applications. The DSF20 offers precise voltage and current measurements, allowing for thorough testing and diagnostics. Its user-friendly interface and robust design make it suitable for both professionals and hobbyists, ensuring accurate testing and reliable battery performance data.

Key Features

• •

  Wide Voltage Range: Supports battery packs from 9V to 99V, accommodating various battery configurations.

• •

  Adjustable Current Settings:

  • •Charge Current: 0.5A to 10A
  • •Discharge Current:
    • •9V–21V: 0.5A–10A
    • •21V–99V: 0.5A–20A
• •

  Dual Operation Modes:

  • •Panel Operation: Manual control via the device's interface.
  • •Online Operation: Remote control through PC software, allowing for charge-discharge settings, data sampling, test report generation, and analysis.
• •

  Cycle Testing: Supports up to 16 charge-discharge cycles, useful for battery aging tests.

• •

  Data Recording: Captures data at specified intervals for voltage, current, and time, facilitating detailed analysis.

• •

  Safety Protections:

  • •Power-down memory function
  • •Reverse connection protection
  • •Over-temperature protection
  • •Over-voltage protection
  • •Short-circuit protecti
• •

  Modular Design: Facilitates easy maintenance and replacement of components.

• •

  Communication Interface: Equipped with a LAN port and supports TCP/IP protocol for seamless integration with computer systems.

Technical Specifications

• •Model: DSF20
• •Input Voltage: AC 220V ±10%, 50Hz/60Hz
• •Input Power: 900W
• •Applicable Batteries: Lithium-ion and lead-acid battery packs
• •Charge Modes: Constant current and constant voltage
• •Discharge Modes: Constant current
• •Charge Cut-off Conditions: Voltage, current, time, capacity
• •Discharge Cut-off Conditions: Voltage, current, time, capacity
• •Cycle Index: 1–16 times
• •Data Recording Conditions: Time interval, voltage interval, current interval
• •IP Grade: IP20
• •Noise Level: <76 dB
• •Operating Temperature: 0°C to 40°C
• •Storage Temperature: -10°C to 50°C
• •Operating Humidity: ≤70% RH (non-condensing)
• •Storage Humidity: ≤80% RH (non-condensing)
• •Dimensions: 46.5 cm × 36.0 cm × 14.5 cm
• •Weight: 9 kg (net), 11 kg (gross)

The DSF20(DK) 99V-20AMP tester is a reliable and versatile tool for professionals involved in battery development, testing, and maintenance. Its comprehensive features and user-friendly interface make it an essential device for ensuring battery performance and safety.
