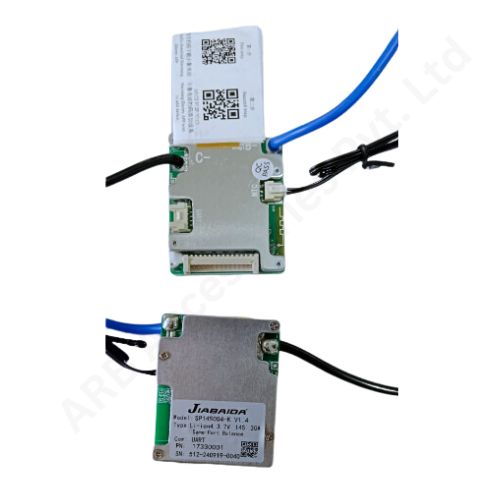

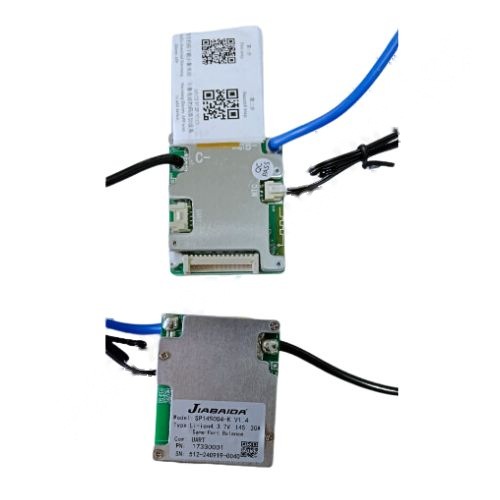

BMS 10-14S 30A SMART JBD (SP14S004) (7d42)

JBD Smart BMS 10-14S 30A (SP24S004) Charge and discharge are both at the same port

Product Data Sheet (SP24S004)

• •Cell specifications: 10~14 strings of LiFePO4 battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 30A
• •Continuous discharging current: 30A
• •Consumption of running: ≤10mA
• •Operating temperature: -20°C~75°C

The JBD SMART BMS 30A (SP14S004) 10-14S is a reliable Battery Management System designed for lithium-ion and LiFePO4 battery packs with 10 to 14 series cells. It supports a continuous discharge current of 30A, making it suitable for a variety of moderate power applications, such as energy storage, electric bikes, and small backup power systems. The BMS provides crucial protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature monitoring, ensuring safe and efficient operation. With active cell balancing, it helps maintain voltage consistency across cells, optimizing battery performance. The system also supports UART, RS485, and CANBUS communication for easy integration with external monitoring systems, and Bluetooth for real-time diagnostics, providing flexibility and control for various applications.
