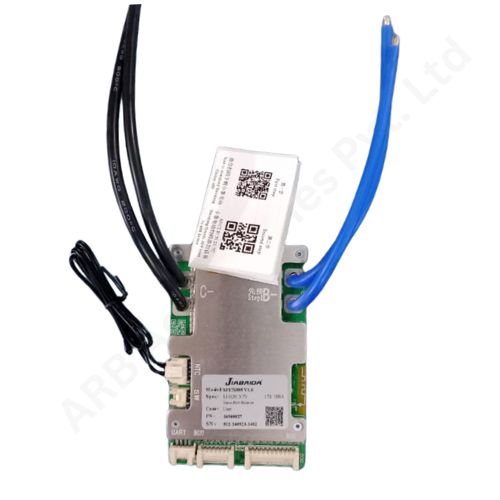

BMS 10-17S 100A SMART JBD (SP17S005) (7d40)

JBD Smart BMS 10-17S 100A (SP17S005) Charge and discharge are both at the same port

Product Data Sheet (SP17S005)

• •Cell specifications: 10~17 strings of ternary lithium batteries
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 4.20V*Number of strings
• •Cell voltage range: 2.8~4.25V
• •Continuous charging current: 100A
• •Continuous discharging current: 100A
• •Consumption of running: ≤10mA
• •Consumption of sleep: ≤500uA
• •Circuit resistance: ≤10mR
• •Operating temperature: -30°C~75°C

The JBD SMART BMS 100A SP17S005 (10-17S) is a robust Battery Management System designed for 10 to 17 series lithium-ion and LiFePO4 battery packs. It supports a continuous discharge current of 100A, making it ideal for high-power applications such as electric vehicles, large-scale energy storage systems, and backup power solutions. The BMS offers comprehensive protection, including overcharge, over-discharge, overcurrent, short circuit, and temperature safeguards, ensuring the safety and longevity of the battery. It also features active cell balancing to maintain voltage consistency across all cells. With UART, RS485, and CANBUS communication support, and Bluetooth for real-time monitoring and diagnostics, the system provides seamless integration and efficient battery management, making it a perfect solution for demanding applications.
