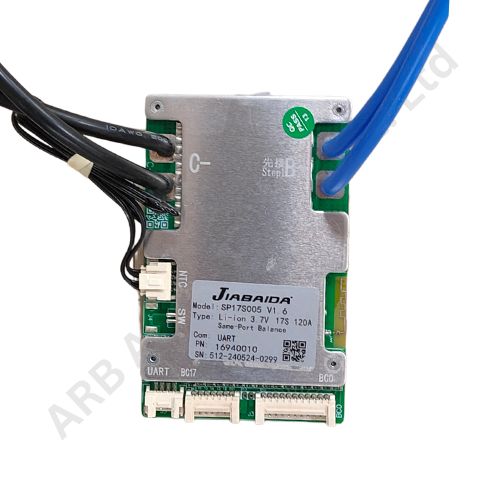

JBD SMART BMS 10-17S 120A SP17S005

JBD Smart BMS 10-17S 120A (SP17S005) Charge and discharge are both at the same port

Product Data Sheet (SP17S005)

• •Cell specifications: 10~17 strings of ternary lithium batteries
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 4.20V*Number of strings
• •Cell voltage range: 2.8~4.25V
• •Continuous charging current: 120A
• •Continuous discharging current: 120A
• •Consumption of running: ≤10mA
• •Consumption of sleep: ≤500uA
• •Circuit resistance: ≤10mR
• •Operating temperature: -30°C~75°C

The JBD SMART BMS 120A SP17S005 (10-17S) is a high-performance Battery Management System designed for 10 to 17 series lithium-ion and LiFePO4 battery packs. It supports a continuous discharge current of 120A, making it suitable for demanding high-power applications such as electric vehicles, large-scale energy storage systems, and commercial backup power solutions. The BMS provides essential protection features including overcharge, over-discharge, overcurrent, short circuit, and temperature management, ensuring safe and efficient battery operation. It also incorporates active cell balancing for voltage uniformity across cells. With UART, RS485, and CANBUS communication support, along with Bluetooth for real-time monitoring and diagnostics, the system offers flexible and reliable battery management, providing precise control and enhanced performance for various applications.
