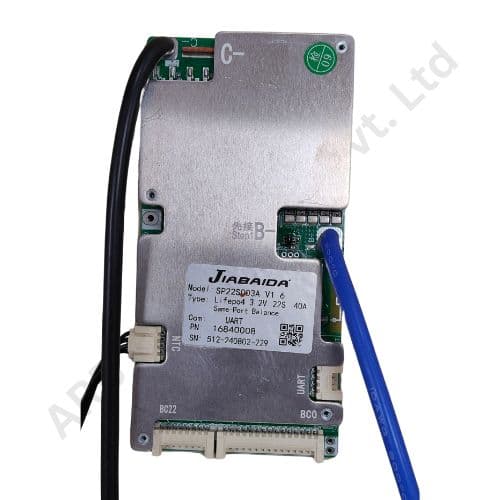

BMS 6 -22S 40A SMART JBD (SP22S003A) (7330)

JBD Smart BMS 6-22S 40A (SP22S003A) Charge and discharge are both at the same port

Product Data Sheet (SP22S003A)

• •Cell specifications: 6~22 strings of Lithium Iron Battery
• •Interface type: Charge and discharge are both at the same port
• •charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 40A
• •Continuous discharging current: 40A
• •Consumption of running: ≤15mA
• •Consumption of sleep: ≤2000uA
• •Operating temperature: -20°C~75°C

The JBD SMART BMS 40A SP22S003A (6-22S) is a compact and efficient Battery Management System designed for 6 to 22 series cells in lithium-ion and LiFePO4 battery packs. It supports a continuous discharge current of 40A, making it ideal for applications that require moderate power output. This BMS offers essential protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring safe and reliable battery performance. With active cell balancing, it ensures consistent voltage across the battery pack. The system supports UART, RS485, and CANBUS communication for easy integration and monitoring, with Bluetooth functionality for real-time diagnostics, making it suitable for solar energy storage, electric vehicles, and backup power systems.
