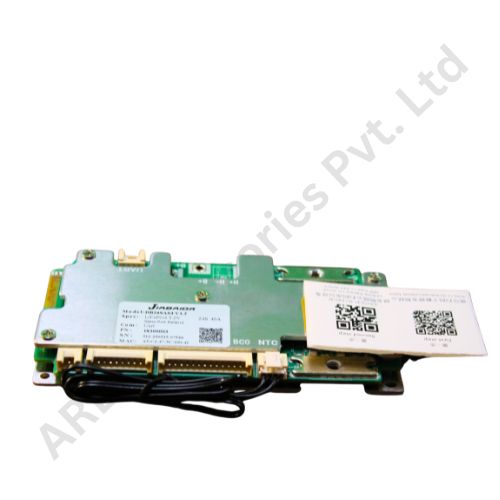

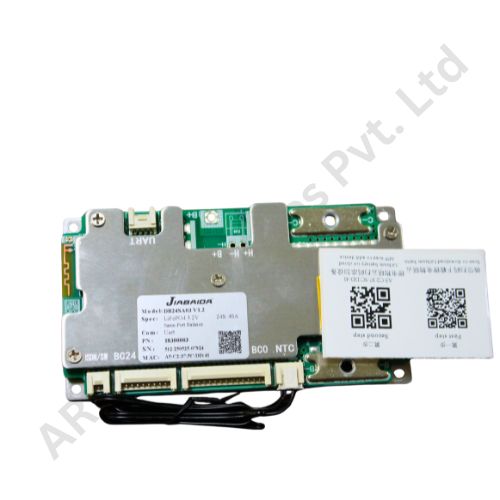

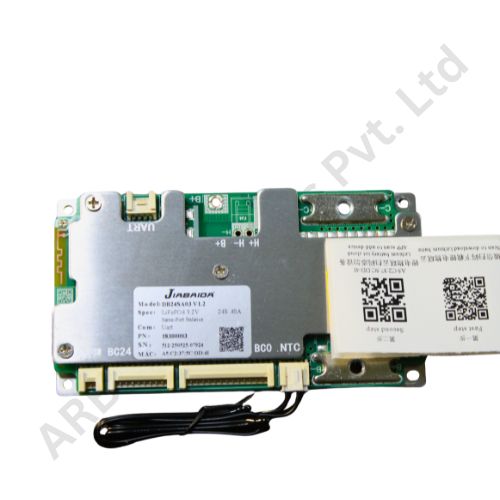

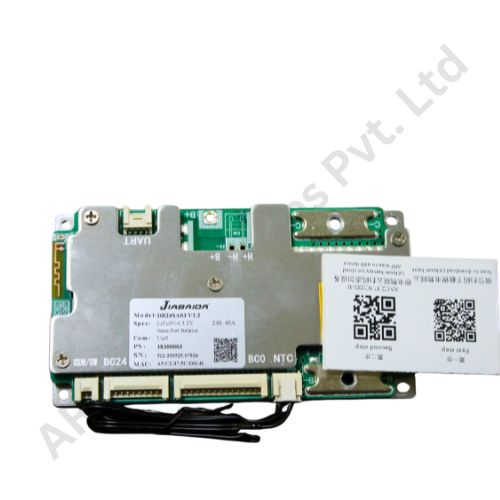

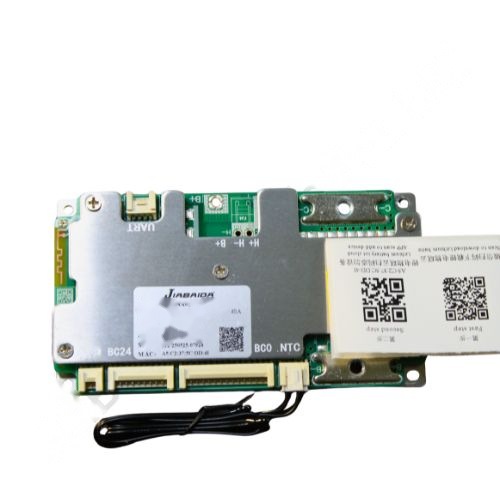

BMS 7-24S 40A SMART JBD (DB24SA03)

Product Data Sheet (DB24SA03)

The BMS 7-24S 40A SMART JBD (DB24SA03) is an intelligent, multi-series Battery Management System (BMS) engineered for high-voltage applications and large lithium battery packs. Supporting 7S to 24S configurations across Li-ion, LFP, NMC, and other chemistries, this JBD BMS offers robust 40A current handling, real-time monitoring, and Bluetooth/UART/RS485 communication capabilities.

Technical Specifications

Feature	Details
Brand	JBD (Jiabaida)
Model	DB24SA03
Battery Configurations	7S – 24S
Supported Chemistries	LiFePO4, NMC, LTO, Li-ion
Nominal Voltage	Configurable (based on cell count)
Continuous Current	40A Charge / 40A Discharge
Balancing Type	Passive Balancing
Balancing Current	60mA ±10mA
Communication Ports	UART, Bluetooth, RS485, CAN (optional)
Temperature Sensors	2x NTC (10K)
Short Circuit Protection	Supported
Overcurrent / Overvoltage / Undervoltage Protection	Yes
Mobile App	iOS / Android via Bluetooth (via JBD BMS App)
PC Software	Supported via UART
Firmware Upgradeable	Yes

Key Features

•
** Wide Voltage Range (7S–24S)** Flexibly supports battery systems from 22V to 86.4V, catering to high-capacity applications.
•
** Smart Connectivity** Comes with Bluetooth and UART communication for real-time monitoring through mobile or PC.
•
** Complete Battery Protection** Offers protection from overcharging, over-discharging, short circuits, current spikes, and overheating.
•
** Real-Time Data Visualization** Monitor battery voltage, temperature, cell balance, cycles, and SOC on your smartphone or computer.
•
** Advanced Configurability** Customize thresholds for overvoltage, undervoltage, current, temperature, and balance.
•
** Data Logging & Firmware Support** Supports history logs and firmware updates for long-term optimization and performance tracking.
