BMS 7-24S 60A SMART JBD (DB24SA03)

Product Data Sheet (DB24SA03)

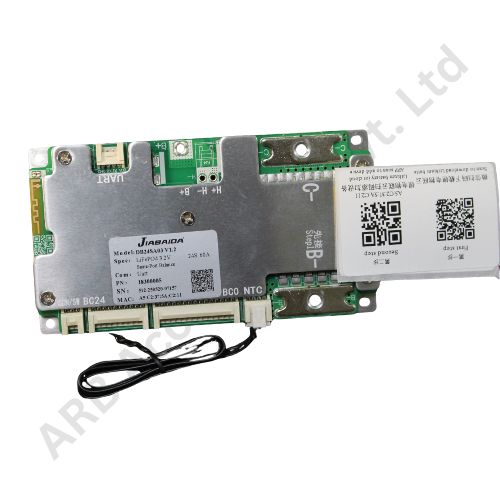

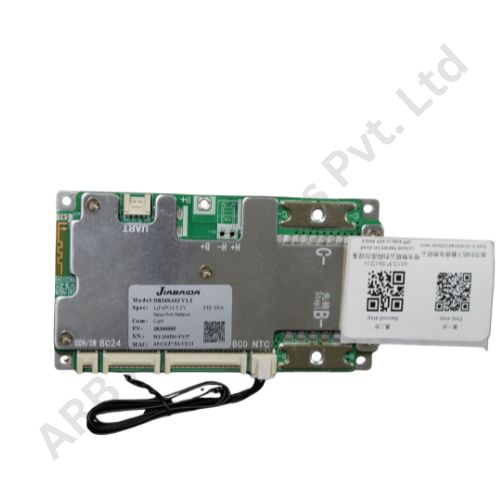

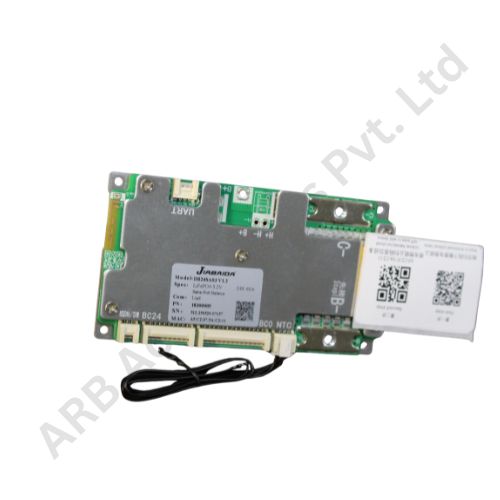

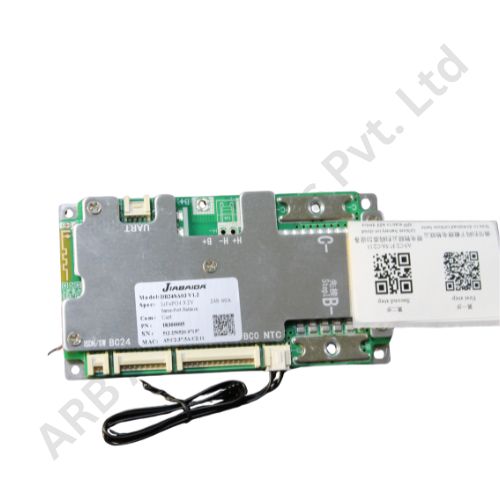

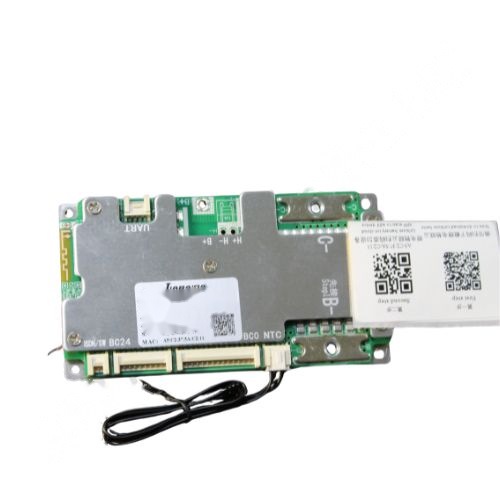

The JBD 7-24S 60A Smart BMS (DB24SA03) is a highly intelligent and customizable Battery Management System (BMS) built to deliver exceptional safety, reliability, and performance for medium- to high-power lithium battery applications. Whether you're assembling a solar energy storage system, DIY powerwall, electric vehicle, or telecom backup battery, this BMS is equipped to handle demanding tasks with precise control and advanced features.

Technical Specifications

Parameter	Value
Model	DB24SA03 (JBD)
Battery Types	LiFePO4 / NMC / LTO / Li-ion
Cell Configuration	7 to 24 Cells (S)
Rated Current	60A Charge / 60A Discharge
Balance Method	Passive balancing
Balance Current	~60mA
Communication	UART, Bluetooth, RS485, CANBus
App Support	iOS & Android via Bluetooth
Software Control	JBD PC Suite (via UART/CAN)
Overcurrent Protection	Yes (programmable)
Temperature Sensors	Dual NTC 10K
Protection Features	OVP, UVP, SCP, OTP, OCP
Dimensions	Compact aluminum-encased board
Firmware Upgradeable	Yes

Key Features

• •

  ** Full Safety Coverage:** Over-voltage, under-voltage, over-current, short circuit, and thermal protection ensures complete battery safety.

• •

  ** App Monitoring:** Monitor pack voltage, cell voltages, temperature, current, SOC, cycle count, and fault status in real time with the JBD smartphone app.

• •

  ** Smart Configuration:** Fully programmable thresholds for charging/discharging, temperature limits, cell balancing start voltage, and more.

• •

  ** Multi-Interface Communication:** Access telemetry or make configurations via UART, CANBus, or RS485, with mobile or PC access for diagnostics and updates.

• •

  ** Data Logging & Real-Time Diagnostics:** Capture live data and track historical battery behavior for improved performance analysis and maintenance.

• •

  ** Aluminum Casing:** Strong metal body ensures heat dissipation and structural stability, suitable for rugged environments.

• •

  ** Versatile Cell Support:** Works with major lithium chemistries — adjust cell settings through the software.

Applications

• •Solar Off-grid and Hybrid Systems
• •Electric Bicycles, Scooters, and e-Trikes
• •Home Power Backup (Inverter-Ready)
• •DIY Powerwall Packs & Energy Banks
• •Telecom & Industrial Battery Solutions
