JBD SEMI SMART BMS 7-24S 50A DB24SA03
Minimum Quantity: 1 PCS
Currently out of stock. You can still request a quote — we'll reply with a lead time, or tell us to let you know the moment it lands.
Product Description

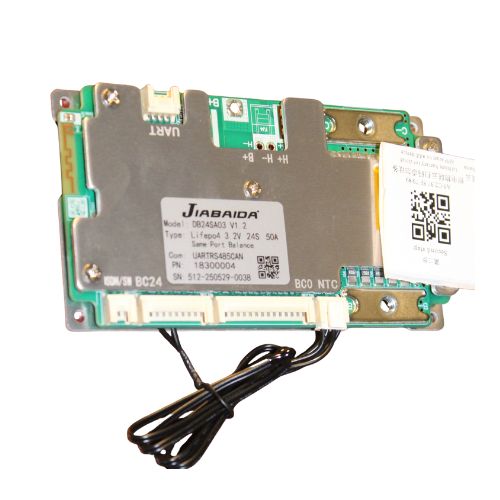

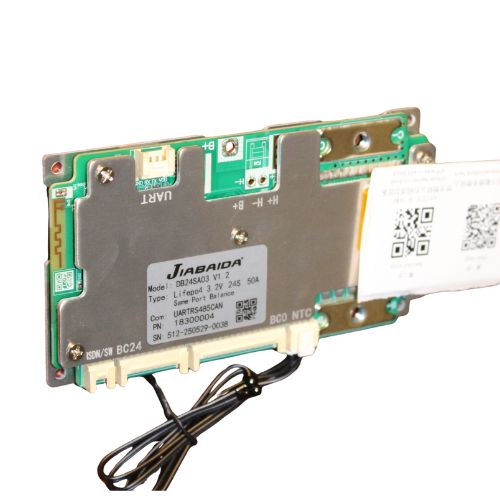

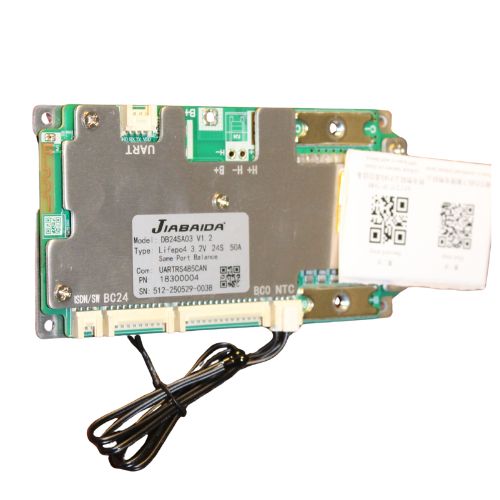

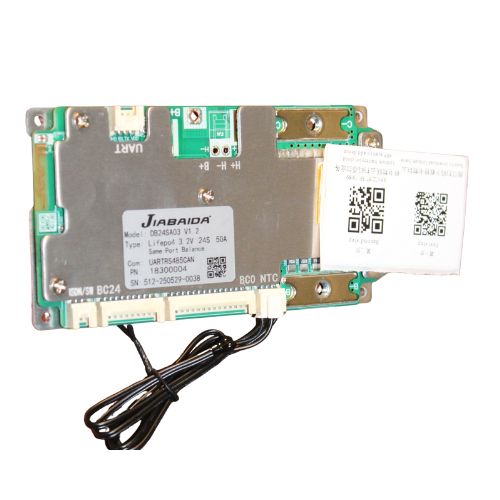

BMS 7-24S 50A SMART JBD (DB24SA03)
The JBD DB24SA03 7-24S 50A Smart BMS is a robust and highly configurable Battery Management System built for professionals and enthusiasts dealing with high-voltage lithium battery packs. Supporting a range from 7S to 24S, this BMS is engineered to safeguard and intelligently manage battery packs based on LiFePO4, NMC, LTO, and Li-ion chemistries.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DB24SA03 (JBD) |
| Supported Configurations | 7S to 24S |
| Battery Types | LiFePO4, Li-ion, LTO, NMC |
| Rated Current | 50A Charge / Discharge |
| Balancing Type | Passive |
| Balancing Current | ~60mA |
| Short Circuit Protection | Yes |
| Over/Under Voltage | Configurable via software |
| NTC Temperature Sensors | 2x 10K |
| Communication Options | UART, Bluetooth, RS485, CAN |
| App Control | iOS & Android supported |
| PC Software | JBD BMS Tool |
| Size | Compact metal shell module |
| Firmware | Upgradeable |
Key Features
- •
** Smart Battery Management:** Full-stack safety with over-voltage, under-voltage, over-current, short circuit, and thermal protection.
- •
** Bluetooth & UART Communication:** Monitor and configure the BMS remotely via mobile app (Bluetooth) or PC (UART/RS485/CAN).
- •
** Wide Battery Compatibility:** Easily adaptable for 3.2V LiFePO4, 3.7V Li-ion/NMC, and 2.4V LTO cells, making it suitable for a wide range of energy solutions.
- •
** Real-Time Monitoring:** View voltages of each cell, pack status, temperature, charge/discharge current, and SOC in real-time.
- •
** Software Customization:** Adjust thresholds for overcharge, over-discharge, balance trigger, temperature limits, and more via PC.
- •
** Intelligent Balancing:** Ensures extended pack life and consistent performance by gradually balancing cells during charge.
- •
** Metal Shell Protection:** The robust aluminum housing improves thermal conductivity, protects the PCB, and adds structural safety.
Applications
- •Solar Energy Storage (Off-grid/Hybrid)
- •Electric Bicycles / Scooters / Trikes
- •DIY Powerwalls & Backup Systems
- •Home & Commercial Energy Banks
- •Telecom & UPS Backup Batteries
- •Industrial Robots & Portable Equipment
Key Features
- •Premium Quality
- •Reliable Performance
- •Long Service Life
- •Certified Standards
Technical Specifications
- Model
- b89e
- Product Name
- JBD SEMI SMART BMS 7-24S 50A DB24SA03
- Brand
- JBD
Applications
- •Battery Packs
- •Energy Storage
- •Power Systems
Manufacturer
JBD
