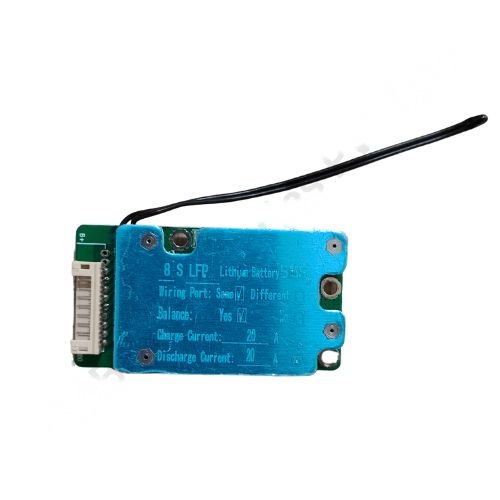

BMS LFP 08S 10A WITH BALANCE (JLGW) (b35b)

JLGW BMS LFP 8S 10A SAME PORT

Product Data Sheet

The BMS LFP 08S 10A WITH BALANCE (JLGW) is a robust and efficient Battery Management System specifically designed for LiFePO4 battery packs configured in 8 series cells (08S - 25.6V). This module provides essential protections such as overcharge, over-discharge, overcurrent, short circuit, and thermal safety, ensuring the battery pack operates safely and extends its lifespan.

Technical Specifications

Parameter	Details
Cell Configuration	8S (8 Series Cells)
Battery Type	LiFePO4 (LFP)
Nominal Voltage	25.6V
Charge Cut-off Voltage	29.2V
Continuous Discharge Current	10A
Charge Current	10A
Balance Function	Yes – Passive Balancing
Balance Activation Voltage	3.5V per cell
Temperature Sensor	Yes (wired sensor included)
Port Type	JST XH Connector
Board Color	Blue Aluminum Shielded PCB
Application Range	8S LFP Pack Protection & Monitoring

Key Features

• •

  Accurate Passive Balancing Built-in balancing keeps cell voltages within optimal range, maximizing pack life and charge efficiency.

• •

  Precision Protection Circuitry Overcharge, over-discharge, short circuit, and overcurrent protection to ensure long-term safety.

• •

  Thermal Sensing Support Includes an NTC thermistor for monitoring and preventing overheating during charge/discharge cycles.

• •

  Compact & Durable Build Designed with high-quality components, housed in an aluminum-backed PCB for efficient heat dissipation.

• •

  JST Connectors for Easy Integration Plug-and-play installation for any compatible battery pack.

Applications

• •E-scooters / E-bikes / E-cycles
• •Solar Energy Storage
• •DIY Battery Packs & Inverter Systems
• •UPS / Emergency Power Systems
• •Battery Development & Testing Labs

The PCM LFP 08S 10A (JLGW) is a Battery Protection Circuit Module (PCM) designed for 8 series Lithium Iron Phosphate (LFP) battery packs, supporting a 10A continuous discharge current. This module is ideal for higher-power applications such as energy storage systems, backup power solutions, and electric vehicles. It provides essential protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe operation and reliability of the battery. The JLGW designation refers to a specific manufacturer or design. The PCM also helps to maintain cell balance, optimizing the performance and longevity of the battery pack.
