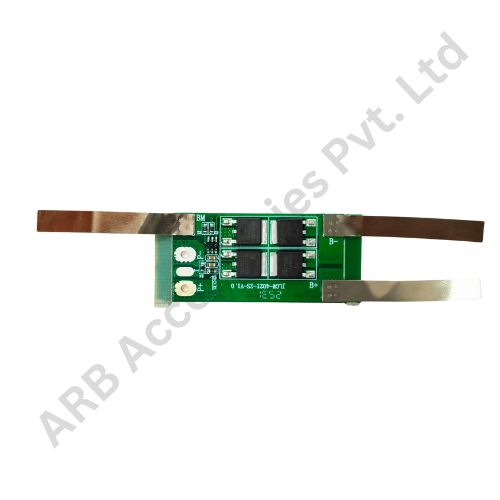

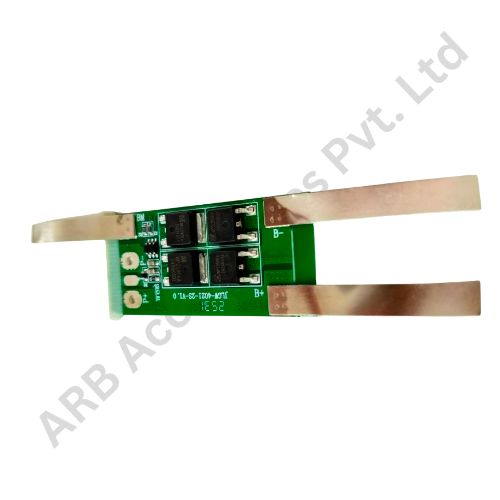

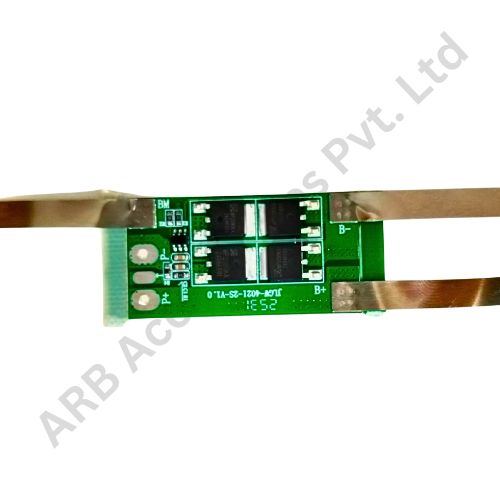

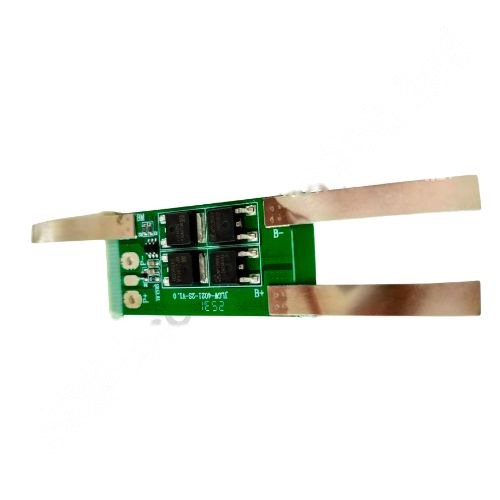

BMS LFP 2S 10A (JLGW) (531b)
Minimum Quantity: 20 PCS
Product Description
JLGW BMS LFP 2S 10A Hardware
The BMS LFP 2S 10A (JLGW) is a robust and high-performance Battery Management System designed specifically for 2S Lithium Iron Phosphate (LiFePO4) battery packs. With a continuous discharge capacity of 10 Amps, this BMS module is ideal for high-drain applications requiring stable power output and integrated safety mechanisms.
Technical Specifications
| Parameter | Details |
|---|---|
| Battery Type | LiFePO4 (LFP) |
| Battery Configuration | 2S (2 Cells in Series) |
| Nominal Voltage | 6.4V |
| Continuous Discharge | 10A |
| Charging Current | Up to 8A |
| Overcharge Detection | 3.75V ± 0.05V per cell |
| Over-discharge Detection | 2.0V ± 0.1V per cell |
| Short Circuit Protection | Yes (Auto Recovery Enabled) |
| Temperature Cut-off | Optional (depends on version) |
| Dimensions (PCB) | Compact, board-mounted form |
| Manufacturer | JLGW |
Key Features
- •
Supports High Discharge Current: Suitable for up to 10A continuous current applications.
- •
Multiple Layers of Protection:
- •
Overcharge
- •
Over-discharge
- •
Overcurrent
- •
Short circuit
- •
Premium Quality FETs for low resistance and thermal stability.
- •
Plug-and-Play PCB Layout for easy integration in battery packs.
- •
Optimized for Safety & Efficiency with low standby power consumption.
Applications
- •E-Bike & E-Scooter battery packs
- •Solar-powered devices
- •Backup battery systems
- •Power tools and high-drain gadgets
- •Robotics and Automation Kits
- •Smart Energy Storage Solutions
The PCM LFP 02S/10A (JLGW) is a Battery Protection Circuit Module (PCM) designed for 2 series Lithium Iron Phosphate (LFP) battery packs, supporting a 10A continuous discharge current. This module is suitable for medium-power applications such as energy storage systems, backup power solutions, and small electric vehicles. It provides essential protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe and reliable operation of the battery. The JLGW designation indicates the specific manufacturer or design. The PCM also helps balance the cells, ensuring consistent voltage across the battery pack and extending its overall lifespan.
Key Features
- •Premium Quality
- •Reliable Performance
- •Long Service Life
- •Certified Standards
Technical Specifications
- Model
- 531b
- Product Name
- BMS LFP 2S 10A (JLGW) (531b)
Applications
- •Battery Packs
- •Energy Storage
- •Power Systems
Manufacturer
GLANNU INDUSTRIES
