BMS LFP 1S 6A (JLGW) (115c)

JLGW BMS LFP 1S 6A Hardware

Product Data Sheet

The BMS LFP 1S 6A (JLGW) is a compact and robust battery protection module tailored for single-cell LiFePO4 (LFP) battery applications. Designed to deliver 6A continuous discharge/charge current, this high-efficiency module provides intelligent control over battery charging and discharging, ensuring longevity, safety, and optimal performance.

Technical Specifications

• •Battery Chemistry: |LiFePO4 (LFP)
• •Series Configuration: 1S (Single Cell)
• •Nominal Voltage: 3.2V
• •Mode: 1S 6A
• •Over charge detection voltage: 3.750±0.025V
• •Over discharge detection voltage: 2.100±0.05V
• •Over current detection voltage: 0.20±0.02V
• •Current consume in normal operation: ≤6μA

Key Features

• •

  ** Overcharge & Over-discharge Protection** Protects your battery from over-voltage and under-voltage situations.

• •

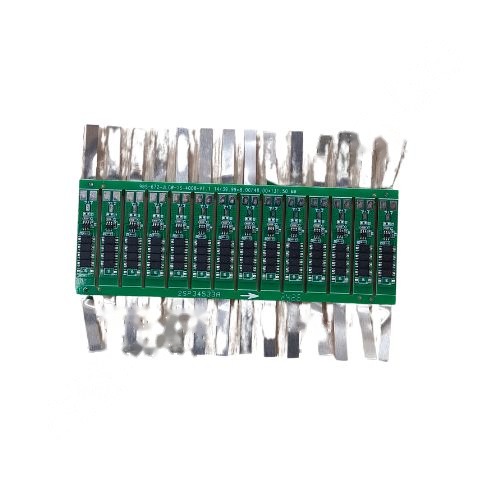

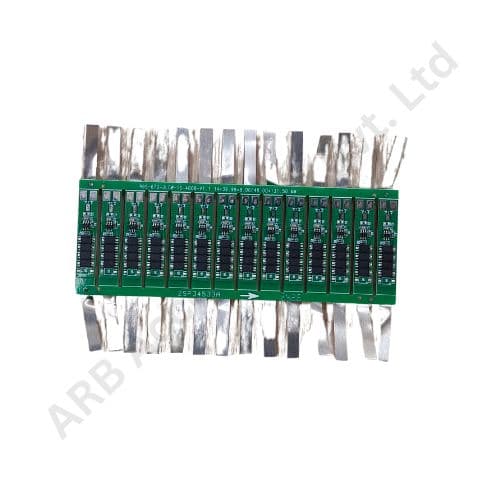

  ** Compact and Easy to Install** Slim PCB layout designed for embedded or small form factor integration.

• •

  ** Nickel Strips for Direct Welding** Supports spot-weld installation, reducing wire resistance and improving contact stability.

• •

  ** Automatic Recovery After Fault Conditions** Integrated reset mechanism for voltage faults and shorts.

• •

  ** Moderate Power Support** Perfect for 6A continuous draw devices like small power tools or LED torches.

Ideal For

• •Solar LED light circuits
• •Small UPS units
• •Portable IoT devices
• •Flashlight and torch light battery packs
• •LiFePO4 DIY packs
• •Handheld testing equipment

The PCM LFP 01S 6A (JLGW) is a Battery Protection Circuit Module (PCM) designed for 1 series Lithium Iron Phosphate (LFP) battery packs, supporting a 6A continuous discharge current. This module is ideal for low-power applications, such as small energy storage systems, backup power solutions, or portable devices. It offers essential protection features including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe and reliable operation of the battery. The JLGW designation refers to a specific manufacturer or design. This PCM helps maintain battery health by balancing the voltage across cells, optimizing performance and extending the lifespan of the battery pack.
