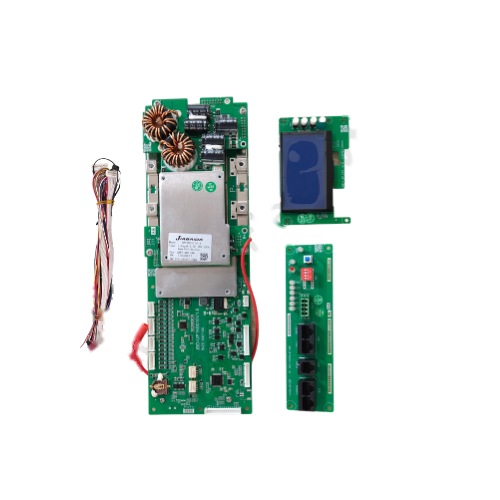

JBD SMART BMS 200AMP UP16S019 K ESS (8-16S) (11316)

JBD Smart ESS BMS 16S 200A (UP16S019) Charge and discharge are both at the same port

Product Data Sheet

• •Cell specifications: 16 lithium iron strings
• •Interface Type: Same port for charging and discharging
• •Recommended charging voltage: 3.6V*16
• •Cell voltage range: 2.7~3.65V
• •Continuous charging current: 200A
• •Continuous discharge current: 200A
• •Operating power consumption: ≤40mA
• •Sleep power consumption: ≤0.4mA
• •Protection board conduction internal resistance: ≤10mR
• •Operating temperature: - 20°C~75°C

The JBD SMART BMS 200A UP16S019 ESS (8-16S) is a high-performance Battery Management System (BMS) designed for 8-16 series lithium-based battery packs, with a 200A continuous discharge current. This BMS is specifically built for Energy Storage Systems (ESS), making it ideal for large-scale applications such as residential or commercial energy storage, solar systems, and backup power solutions. The system features SMART CAN bus communication, enabling real-time monitoring, diagnostics, and remote control via compatible devices. It offers vital safety protections such as overcharge, over-discharge, overcurrent, short circuit, and temperature protection. Additionally, it supports cell balancing, ensuring optimized battery performance and extending the overall lifespan of the battery pack. This makes the JBD SMART BMS 200A an excellent choice for reliable and efficient energy storage management.
