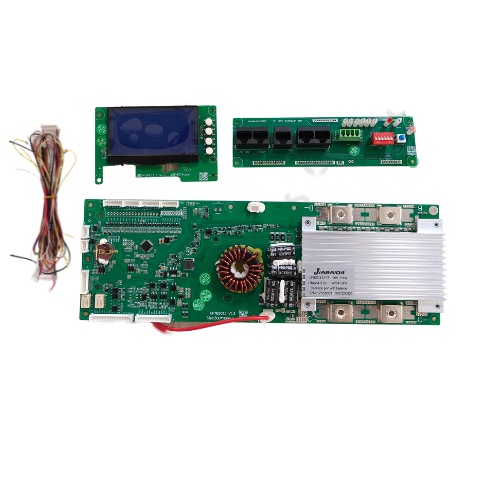

SMART ESS BMS 8-16S LFP 150A JBD (UP16S019) (76ba)

JBD Smart ESS BMS 16S 150A (UP16S019) Charge and discharge are both at the same port

Product Data Sheet

• •Cell specifications: 16 strings of LFP battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.65V*Number of strings
• •Continuous charging current: 150A
• •Continuous discharging current: 150A
• •Consumption of running: ≤25mA
• •Consumption of sleep Mode: ≤150uA
• •Consumption of power down Mode: ≤20uA
• •Circuit resistance: ≤10mR
• •Operating temperature: -20°C~75°C

The JBD SMART BMS 150A UP16S019 ESS (8-16S) is a high-performance Battery Management System (BMS) designed for 8-16 series lithium-based battery packs, supporting a 150A continuous discharge current. This system is optimized for use in Energy Storage Systems (ESS), making it ideal for applications such as large-scale residential or commercial energy storage, solar power systems, and backup power solutions. The BMS provides SMART CAN bus communication, enabling seamless integration for real-time data monitoring, diagnostics, and remote control via compatible devices. It offers essential safety protections, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe and efficient operation of the battery pack. Additionally, it supports cell balancing, improving overall battery performance and extending the lifespan of the system.
