JBD SMART ESS BMS 8-16S 100A UP16S026

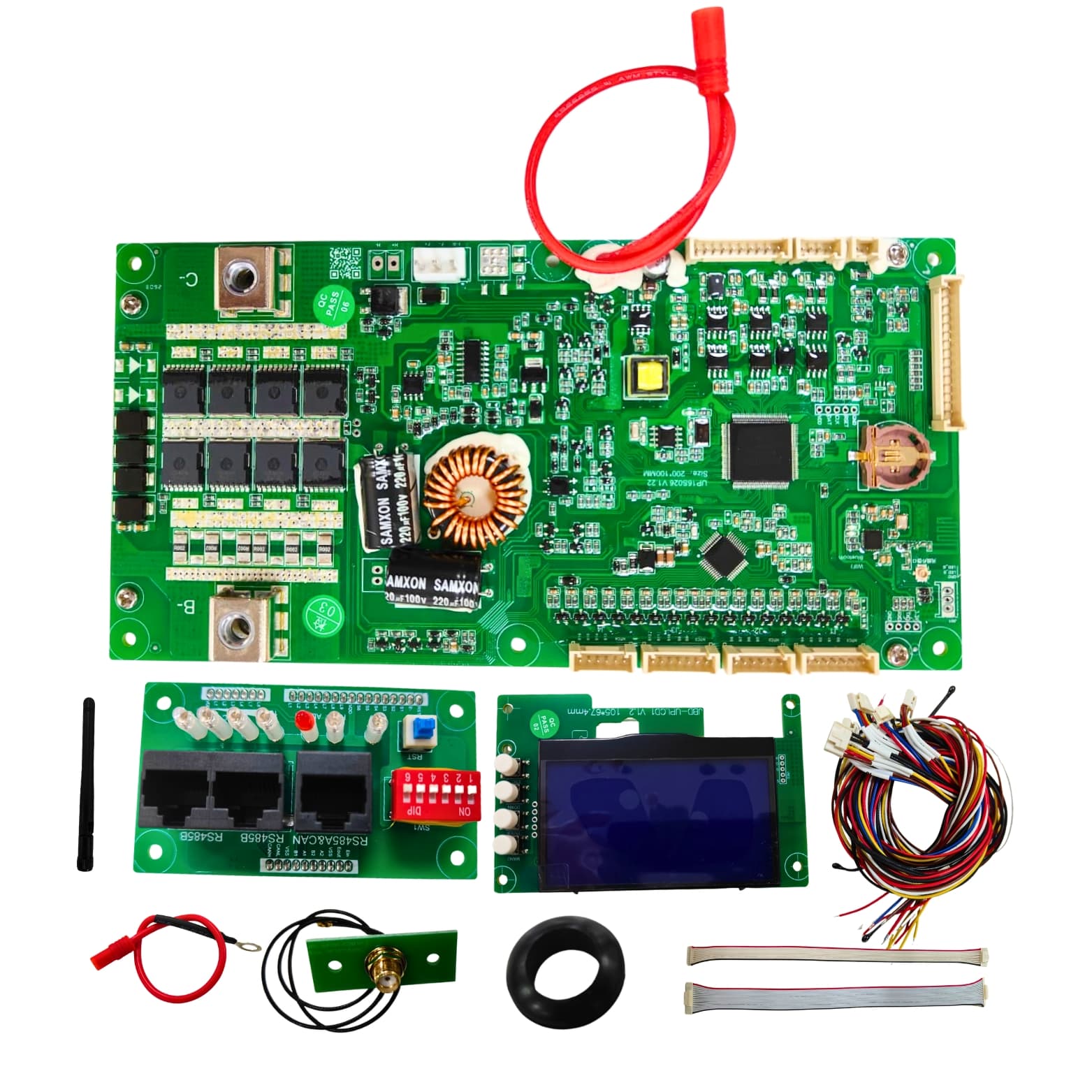

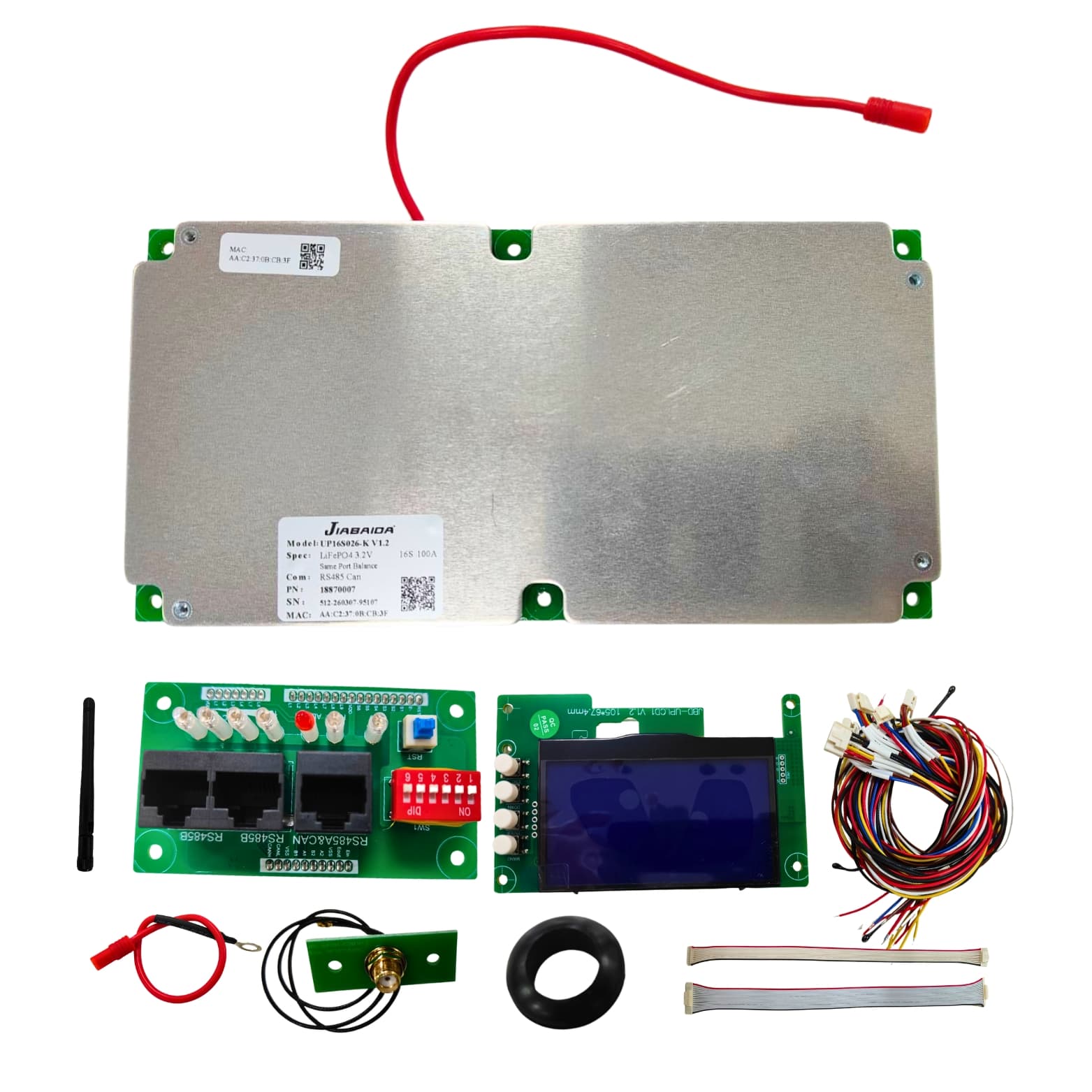

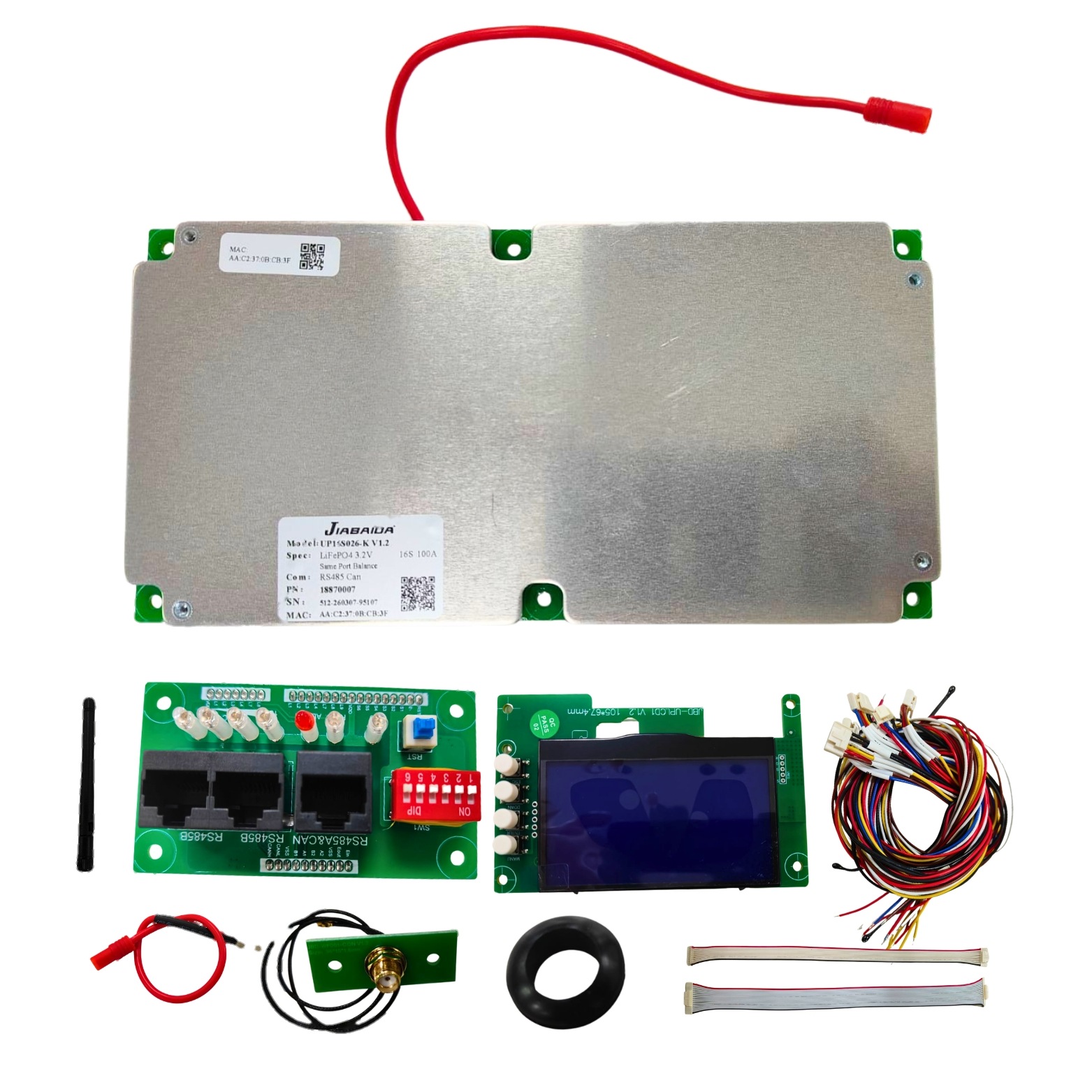

SMART ESS BMS 16S LFP 100A JBD (UP16S026) common port with balance

Product Data Sheet

The SMART ESS BMS 8–16S LFP 100A JBD (UP16S026) is an advanced Battery Management System (BMS) designed for Lithium Iron Phosphate (LiFePO4) battery packs ranging from 8S to 16S configuration. It is widely used in energy storage systems (ESS), solar power systems, inverter batteries, EV applications, and backup power solutions.

Built with JBD smart technology, this BMS ensures high reliability, precision monitoring, and full protection of lithium battery packs, making it suitable for both residential and commercial energy storage setups.

Key Features

• •Supports 8–16 series LiFePO4 battery packs
• •100A continuous charge and discharge current
• •Smart cell balancing function for improved battery life
• •Common port design (charge and discharge through same terminal)
• •Supports RS485 / CAN communication (varies by version)
• •Real-time monitoring via Bluetooth / APP / PC software
• •High precision protection IC for stable performance

Protection Functions

• •Over-charge protection
• •Over-discharge protection
• •Over-current protection
• •Short-circuit protection
• •High/low temperature protection
• •Cell voltage balancing protection

⚙️ Applications

• •Solar energy storage systems (ESS)
• •Home inverter battery systems
• •Electric vehicles (EV)
• •UPS backup systems
• •Lithium battery DIY packs

Performance Highlights

• •Intelligent battery monitoring for each cell
• •High efficiency and low power consumption
• •Improves battery lifespan and safety
• •Stable operation under high load conditions

Summary

The JBD UP16S026 Smart ESS BMS is a powerful and intelligent battery management solution designed to maximize safety, performance, and lifespan of LiFePO4 battery packs, especially in energy storage and inverter-based systems.
