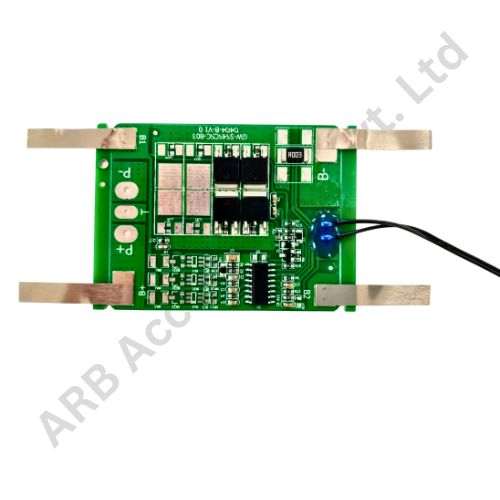

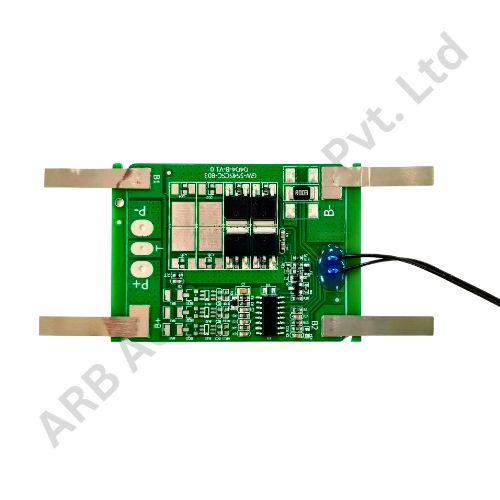

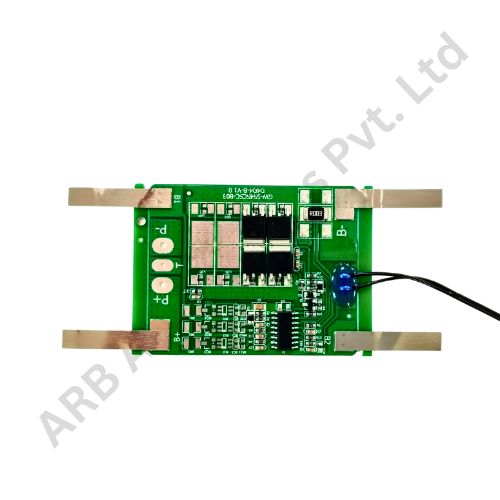

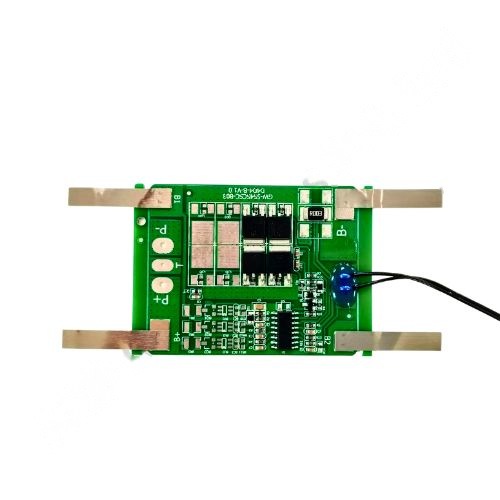

BMS NMC 3S 10A WITH NICKEL WITHOUT BAL (JLGW) (4b31)

JLGW BMS NMC 3S 10A WITH NICKAL WITH BALANCE Hardware

Product Data Sheet

The BMS NMC 3S 10A WITH NICKEL WITHOUT BALANCE (JLGW) is an advanced protection module engineered for 3-cell (3S) lithium-ion battery packs. This board is designed to offer a secure and efficient battery management system, catering to medium-load applications such as e-toys, LED lights, power tools, and DIY storage systems. It comes pre-welded with high-quality nickel strips, ensuring easy installation and minimal resistance during operation.

Key Benefits

• •Safe Charging & Discharging: Built-in overcharge, over-discharge, short circuit, and overcurrent protection keeps your battery safe in all usage conditions.
• •Time-Saving Installation: Includes pre-attached nickel strips to reduce assembly time and improve weld reliability.
• •Low Maintenance: Designed without balance circuitry for use in packs where cells are pre-balanced or balance is not essential.
• •High Compatibility: Works with 11.1V (3S) lithium-ion (NMC) cell configurations.
• •Compact and Durable Design: Ideal for battery packs with space constraints.

Specifications

Parameter	Value
Model	JLGW BMS NMC 3S 10A
Battery Type	Lithium-ion (NMC)
Battery Configuration	3S (11.1V nominal, 12.6V max)
Charge Current	Max 10A
Discharge Current	Max 10A
Balance Feature	Not Available
Protection	Overcharge<br> Over-discharge<br>Overcurrent<br> Short circuit
Port Type	Common Port
Nickel Strip	Pre-attached for welding
Dimensions	Compact & lightweight

Applications

• •DIY Power Banks
• •LED Lighting Battery Packs
• •Robotics and Embedded Devices
• •Battery Storage for Solar Projects
• •E-Scooters / E-Toys / Mini Tools
• •UPS & Backup Units

The PCM NMC 03S/10A WITH NICKEL WITH BALANCE (JLGW) is a Battery Protection Circuit Module (PCM) designed for 3 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 10A continuous discharge current. This module is ideal for moderate to high-power applications, such as energy storage systems, backup power solutions, and electric vehicles. It offers essential protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe and reliable operation of the battery. The WITH NICKEL designation indicates that the PCM uses nickel-plated components for better conductivity, while the WITH BALANCE feature ensures cell balancing, maintaining equal voltage levels across all cells for optimized performance and extended battery life. The JLGW designation refers to the manufacturer or specific design.
