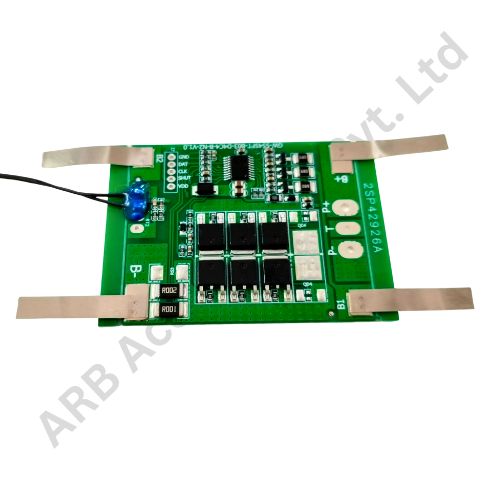

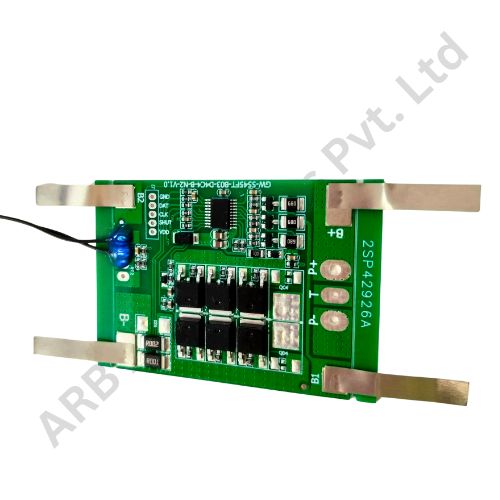

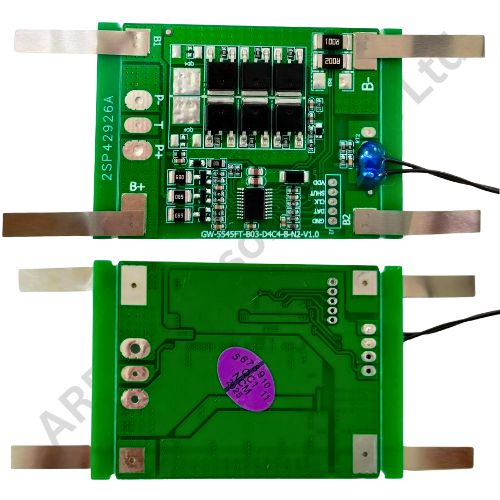

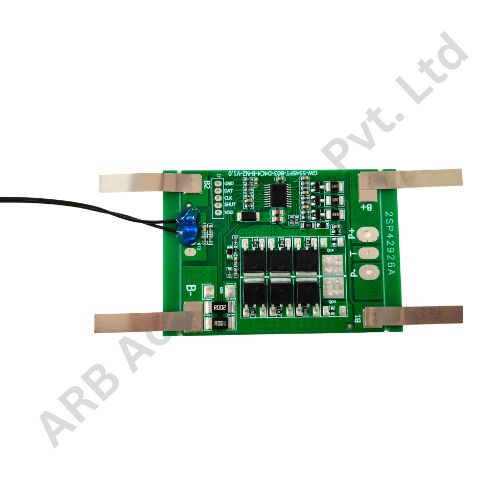

BMS NMC 3S 15A WITH NICKEL (JLGW) (063b)

JLGW BMS NMC 3S 15A WITH NICKAL Hardware

Product Data Sheet

The BMS NMC 3S 15A WITH NICKEL (JLGW) is an expertly designed Battery Management System built to provide reliable protection and robust performance for 3S lithium-ion (NMC) battery configurations. Designed with pre-attached nickel strips, this module simplifies welding and improves conductivity — making it an ideal solution for applications that demand higher current capacity, compact design, and durability.

Key Feature

• •Enhanced Safety: Integrated protection against overcharge, over-discharge, overcurrent, and short circuit ensures the safety and longevity of your battery pack.
• •High Current Capability: Supports up to 15A discharge current, ideal for medium to heavy load devices.
• •Convenient Installation: Pre-attached nickel strips save time and effort in welding, offering seamless integration into battery packs.
• •Efficient Operation: Optimized layout ensures low internal resistance and heat generation during high current flow.
• •Cost-Effective: Offers excellent protection and build quality at a competitive price point.

Technical Specifications

Specification	Details
Model	BMS NMC 3S 15A (JLGW)
Battery Type	Lithium-ion NMC
Battery Configuration	3S (11.1V Nominal / 12.6V Max)
Max Charge Current	15A
Max Discharge Current	15A
Balancing	No balance function
Short Circuit Protection	Yes
Overcharge Protection	Yes
Over-discharge Protection	Yes
Port Configuration	Common Port
Nickel Strip	Pre-installed for easy welding
Board Color	Blue (with industrial-grade finish)
Dimensions	Compact & lightweight design

Applications

• •E-Bike and E-Scooter Packs
• •Power Tools
• •DIY Power Banks
• •Robotics and IoT Modules
• •Solar Storage Systems
• •UPS & Emergency Battery Systems

The PCM NMC 03S/15A (JLGW) is a Battery Protection Circuit Module (PCM) designed for 3 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 15A continuous discharge current. This module is ideal for moderate-power applications such as energy storage systems, backup power solutions, and small electric devices. It offers key protection features including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring safe and reliable battery operation. The PCM also helps maintain balanced voltage across the cells, optimizing performance and extending battery life.
