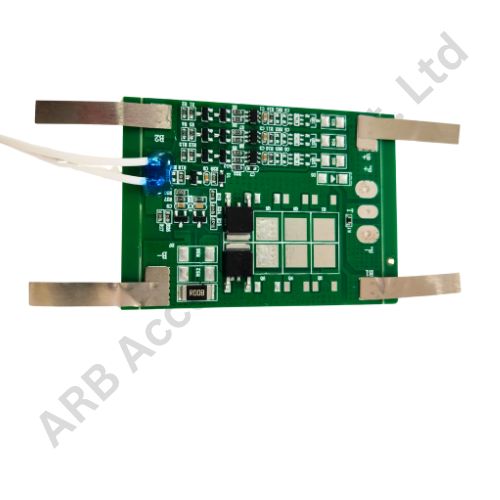

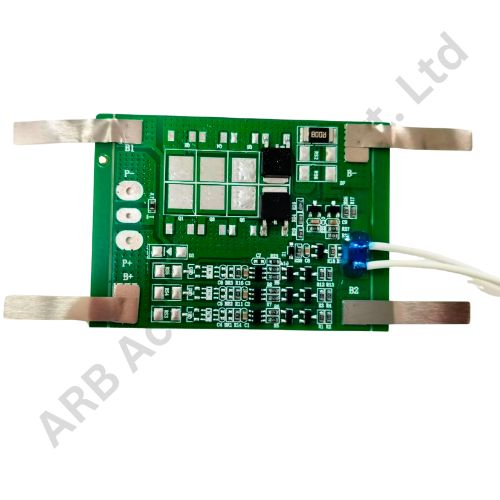

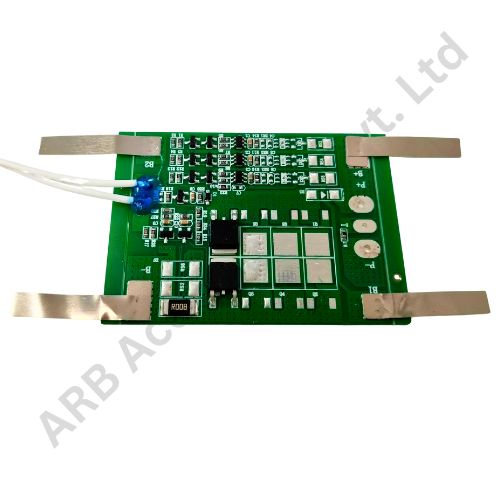

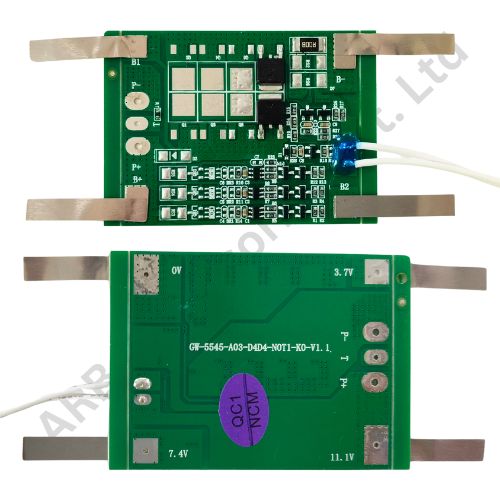

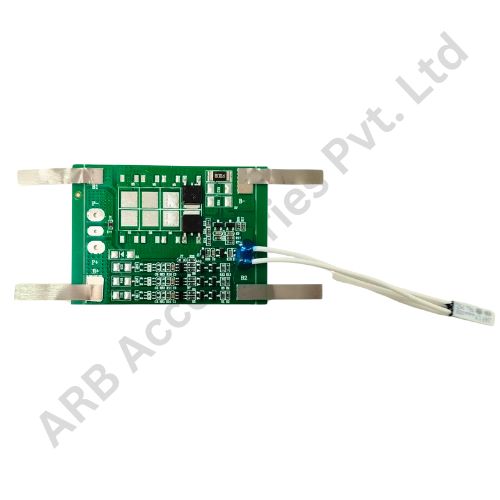

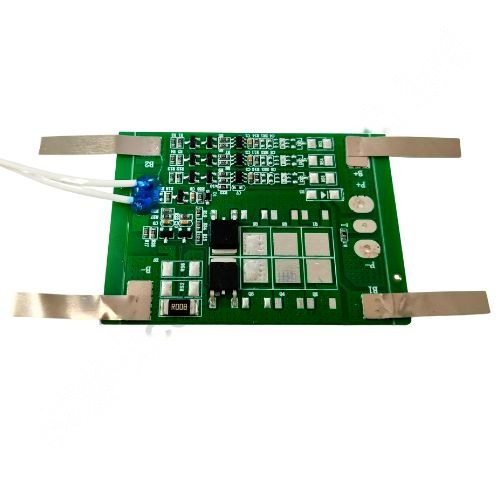

BMS NMC 3S 6A WITH NICKEL WITHOUT BA (JLGW) (4b0d)

JLGW BMS NMC 3S 6A WITH NICKAL WITH BALANCE Hardware

Product Data Sheet

When you build your own power solution, you need assurance. With this BMS NMC 3S 6A from JLGW, you get dependable core protection in a straightforward design. Whether you're building your first power bank or enhancing a portable device, this unit provides the peace of mind of built-in safety without complexity.

Key Feature

• •Safe Power Management: This BMS ensures overcharge, over-discharge, overcurrent, and short-circuit protection for your 3-cell lithium-ion battery pack.
• •Quick Assembly: Comes equipped with nickel strips for immediate spot welding—ideal for battery pack builders and DIY enthusiasts.
• •Compact Protection: Designed for systems where balancing is not required or is handled externally, ensuring simple and fast integration.

Specifications

Feature	Details
Battery Chemistry	NMC (Li-ion)
Configuration	3S (3 Cells in Series)
Nominal Voltage	11.1V
Charge Voltage Cut-off	~4.25V per cell
Discharge Voltage Cut-off	~2.75V per cell
Max Continuous Charge Current	6A
Max Continuous Discharge	6A
Balance Function	❌ Not Available
Short Circuit Protection	Yes
Overcurrent Protection	Yes
Temperature Monitoring	Yes – Thermistor included
Nickel Strips	Pre-soldered for spot welding
PCB Dimensions	~55mm x 45mm
Operating Temperature

The PCM NMC 03S/6A (JLGW) is a Battery Protection Circuit Module (PCM) designed for 3 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 6A continuous discharge current. This module is ideal for moderate-power applications such as energy storage systems, backup power solutions, and small electric devices. It offers key protection features including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring safe and reliable battery operation. The PCM also helps maintain balanced voltage across the cells, optimizing performance and extending battery life.
