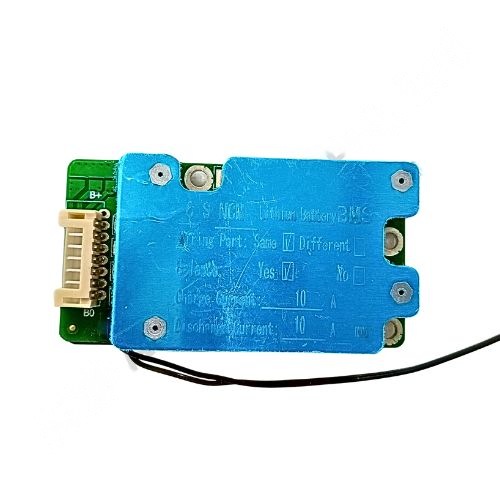

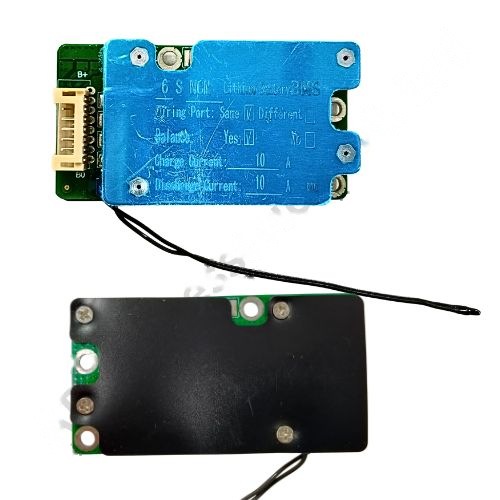

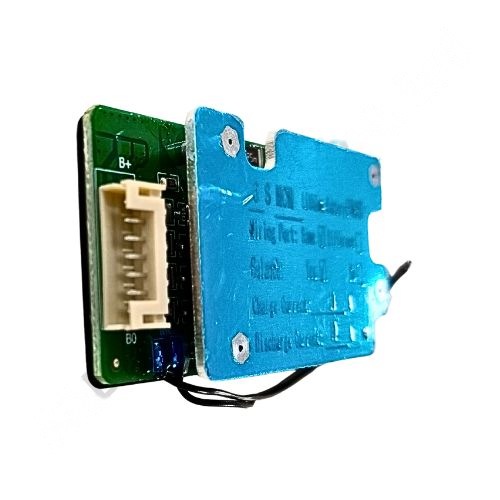

BMS NMC 6S 10A (JLGW) (4b32)

JLGW BMS NMC 6S 10A Hardware

Product Data Sheet

The BMS NMC 6S 10A (JLGW) is a smart, compact, and highly reliable Battery Management System engineered for 6-cell (6S) Lithium-Ion (NMC) battery packs. It provides comprehensive protection for your battery, enhancing safety and performance across a range of applications. Designed to deliver up to 10A continuous discharge current, this BMS ensures safe and efficient power delivery with thermal, overcurrent, and short circuit protections.

Key Features

• •Supports 6-Cell 22.2V Lithium-Ion Battery Packs
• •Built-in Overcharge, Overdischarge & Short-Circuit Protection
• •Highly Reliable 10A Continuous Discharge
• •Low Power Consumption with Enhanced Battery Life
• •Smart Control IC for Intelligent Battery Monitoring

Specifications

Specification	Details
Model	BMS NMC 6S 10A (JLGW)
Battery Type	Lithium-Ion (NMC - 3.7V nominal per cell)
Cell Configuration	6S (6 Series Cells)
Nominal Voltage	22.2V
Max Charging Voltage	25.2V
Discharge Current	10A (Continuous)
Charging Current	Up to 5A
Balancing Function	No (Non-Balanced Version)
Protection	Overcharge, Over-discharge, Overcurrent, Short-circuit, Temperature
Board Dimensions	Compact, space-efficient PCB
Cooling	Passive
Connector Type	JST for balance lead, solder points for P+/B-

Applications

• •Electric Scooters & E-Bikes
• •Battery Backup Packs (UPS Systems)
• •Power Tools
• •Solar Energy Storage
• •DIY Robotics and Embedded Projects

The PCM NMC 6S/10A (JLGW) is a Battery Protection Circuit Module (PCM) designed for 6 series Nickel Manganese Cobalt (NMC) battery packs, supporting a 10A continuous discharge current. This module is suitable for moderate to high-power applications, such as energy storage systems, electric vehicles, and backup power solutions. It offers key protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring the safe and reliable operation of the battery. The JLGW designation indicates the specific manufacturer or design. Additionally, the PCM helps balance the cells, optimizing performance and extending the lifespan of the battery pack.
