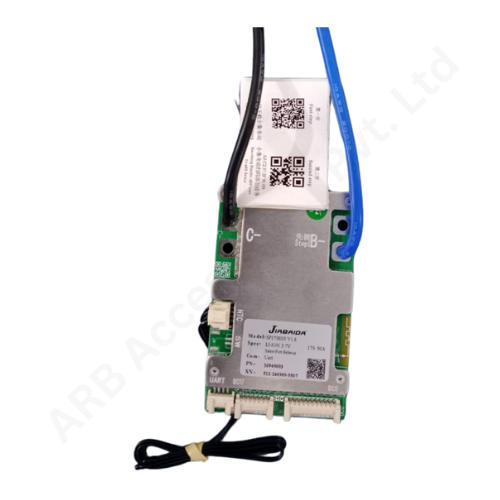

BMS 10-17S 50A SMART JBD(SP17S005) (73b6)

JBD Smart BMS 10-17S 50A (SP17S005) Charge and discharge are both at the same port

Product Data Sheet (SP17S005)

• •Cell specifications: 10~17 strings of Lithium Iron Battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 4.20V*Number of strings
• •Cell voltage range: 2.8~4.25V
• •Continuous charging current: 50A
• •Continuous discharging current: 50A
• •Consumption of running: ≤10mA
• •Consumption of sleep: ≤500uA
• •Circuit resistance: ≤10mR
• •Operating temperature: -30°C~75°C

The JBD SMART BMS 50A SP17S005 (10-17S) is a versatile Battery Management System designed for 10 to 17 series lithium-ion and LiFePO4 battery packs. It supports a continuous discharge current of 50A, making it suitable for a variety of mid-power applications such as energy storage systems, electric vehicles, and backup power solutions. The BMS offers crucial protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature safeguards to ensure safe battery operation. It also provides active cell balancing to maintain voltage consistency across cells. With UART, RS485, and CANBUS communication support, along with Bluetooth connectivity for real-time monitoring, it allows seamless integration and efficient battery management for various applications.
