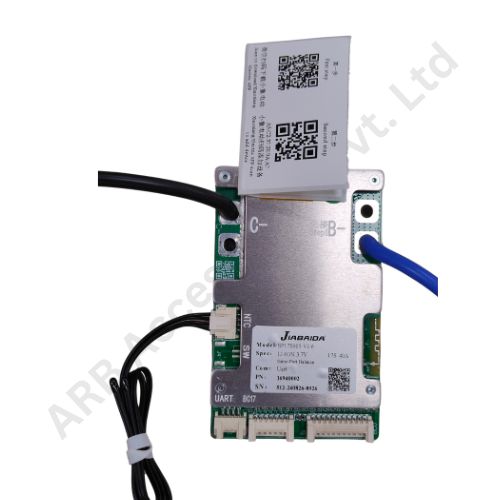

BMS 10-17S 40A SMART JBD (SP17S005) (732a)

JBD Smart BMS 10-17S 40A (SP17S005) Charge and discharge are both at the same port

Product Data Sheet (SP17S005)

• •Cell specifications: 10~17 strings of Lithium Iron Battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 4.20V*Number of strings
• •Cell voltage range: 2.8~4.25V
• •Continuous charging current: 40A
• •Continuous discharging current: 40A
• •Consumption of running: ≤10mA
• •Consumption of sleep: ≤500uA
• •Circuit resistance: ≤10mR
• •Operating temperature: -30°C~75°C

The JBD SMART BMS 40A SP17S005 (10-17S) is a reliable Battery Management System designed for lithium-ion and LiFePO4 battery packs with 10 to 17 series cells. It supports a continuous discharge current of 40A, making it suitable for moderate power applications such as solar storage, electric vehicles, and backup power systems. The BMS includes essential protection features such as overcharge, over-discharge, overcurrent, short circuit, and temperature management, ensuring safe and optimal battery performance. With active cell balancing, it ensures voltage consistency across cells. Additionally, the system supports UART, RS485, and CANBUS communication for integration with external monitoring and control systems, and Bluetooth for real-time diagnostics.
