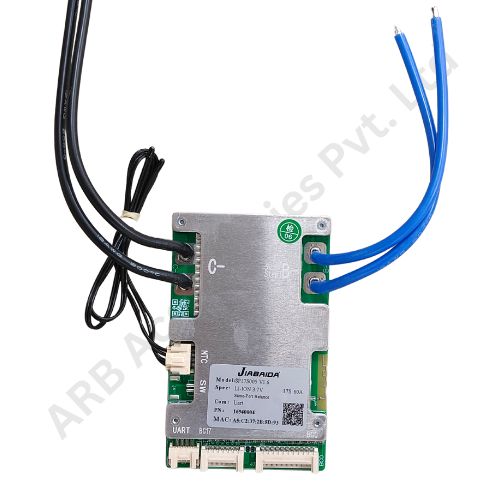

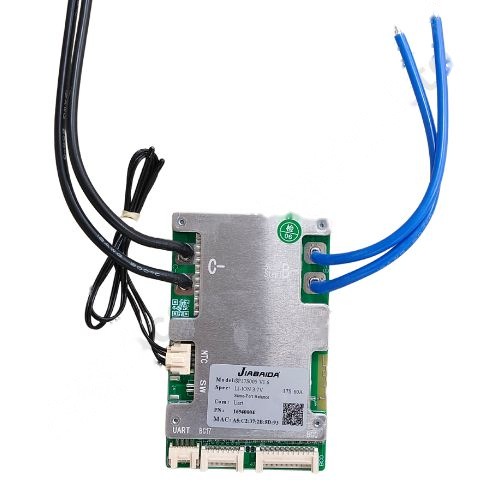

BMS 10-17S 60A SMART JBD (SP17S005) (73b7)

JBD Smart BMS 10-17S 60A (SP17S005) Charge and discharge are both at the same port

Product Data Sheet (SP17S005)

• •Cell specifications: 10~17 strings of Lithium Iron Battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 4.20V*Number of strings
• •Cell voltage range: 2.8~4.25V
• •Continuous charging current: 60A
• •Continuous discharging current: 60A
• •Consumption of running: ≤10mA
• •Consumption of sleep: ≤500uA
• •Circuit resistance: ≤10mR
• •Operating temperature: -30°C~75°C

The JBD SMART BMS 60A SP17S005 (10-17S) is an advanced Battery Management System designed for lithium-ion and LiFePO4 battery packs with 10 to 17 series cells. It supports a continuous discharge current of 60A, making it suitable for moderate to high-power applications such as electric vehicles, solar energy storage, and backup power systems. The BMS features critical protection functions, including overcharge, over-discharge, overcurrent, short circuit, and temperature safeguards to ensure the safe operation of the battery. It also incorporates active cell balancing to maintain voltage consistency across all cells. With support for UART, RS485, and CANBUS communication, as well as Bluetooth connectivity for real-time monitoring, the system offers flexibility and reliability for a variety of applications.
