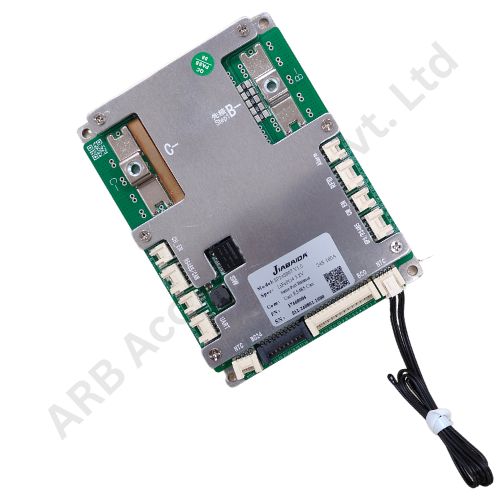

JBD SMART BMS 8-24S 100A SP24S007

JBD Smart BMS 8-24S 100A (SP24S007) Charge and discharge are both at the same port

Product Data Sheet (SP24S007)

• •Cell specifications: 8~24 strings of LiFePO4 battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 100A
• •Continuous discharging current: 100A
• •Consumption of running: ≤20mA
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

The JBD SMART BMS 80A SP24S007 (8-24S) is an advanced Battery Management System designed for managing lithium-ion and LiFePO4 battery packs with configurations from 8 to 24 series cells. It supports a continuous discharge current of 80A and peak currents for high-demand applications. This BMS provides comprehensive protection, including overcharge, over-discharge, short circuit, overcurrent, and temperature management. It features active cell balancing to ensure consistent voltage levels across cells. With support for UART, RS485, and CANBUS communication protocols, along with Bluetooth monitoring, it enables real-time management and diagnostics, making it ideal for solar systems, EVs, and energy storage solutions.
