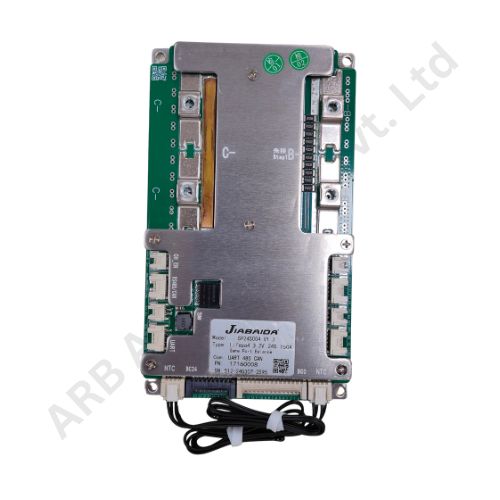

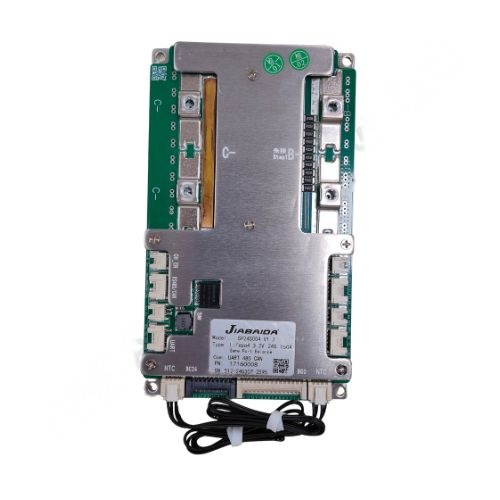

BMS 8-24S 150A SMART JBD (SP24S004) (4949)

JBD Smart BMS 8-24S 150A (SP24S004) Charge and discharge are both at the same port

Product Data Sheet (SP24S004)

• •Cell specifications: 8~24 strings of LiFePO4 battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 150A
• •Continuous discharging current: 150A
• •Consumption of running: ≤20mA
• •Operating temperature: -20°C~75°C

The JBD SMART BMS 150A (SP24S004) is a versatile battery management system designed for lithium-ion and LiFePO4 battery packs with 8 to 24 series cells. It supports a continuous discharge current of 150A and peak currents up to 300A. The BMS provides comprehensive protection, including overcharge, over-discharge, short circuit, and temperature safeguards. It features active balancing for voltage consistency and supports UART, RS485, and CANBUS communication. Compatible with Bluetooth apps for real-time monitoring, it also logs historical data for diagnostics. Ideal for energy storage systems, electric vehicles, and industrial power solutions, it ensures safe and efficient battery operation.
