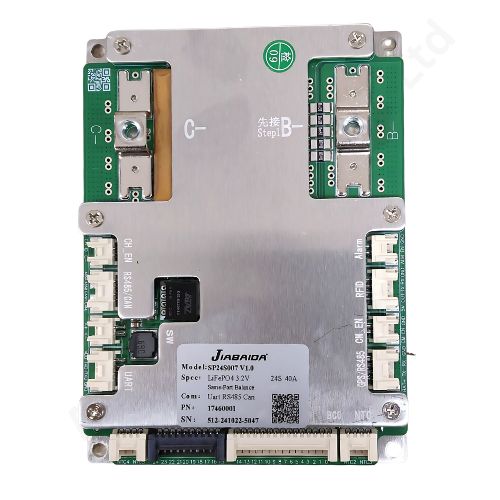

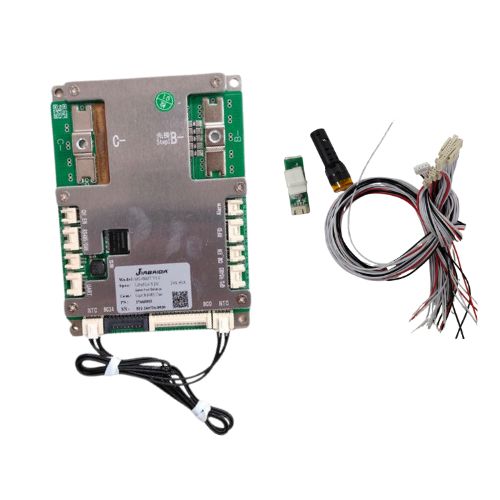

BMS 8-24S 40A SMART JBD (SP24S007) (51a4)

JBD Smart BMS 8-24S 40A (SP24S007) Charge and discharge are both at the same port

Product Data Sheet (SP24S007)

• •Cell specifications: 8~24 strings of LiFePO4 battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 40A
• •Continuous discharging current: 40A
• •Consumption of running: ≤20mA
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

The JBD SMART BMS 40A SP24S007 (8-24S) is a reliable Battery Management System designed for lithium-ion and LiFePO4 battery packs with 8 to 24 series cells. Supporting a continuous discharge current of 40A, it is ideal for small to mid-range applications. The BMS ensures safe and efficient battery operation with protections against overcharge, over-discharge, overcurrent, short circuit, and temperature fluctuations. It features active cell balancing for maintaining voltage uniformity. With UART, RS485, CANBUS communication, and Bluetooth support for real-time monitoring, it is suitable for solar systems, e-bikes, energy storage, and backup power systems.
