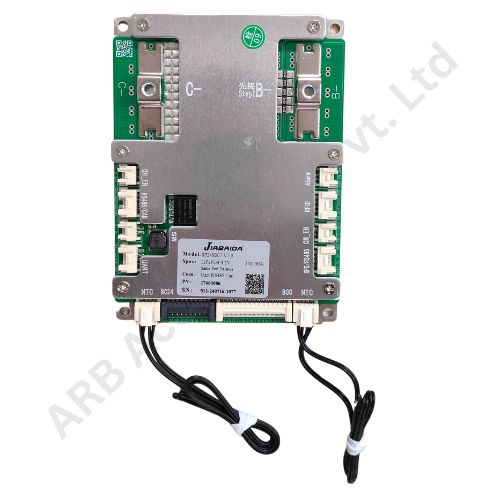

BMS 8-24S 50A SMART JBD (SP24S007) (4946)

JBD Smart BMS 8-24S 50A (SP24S007) Charge and discharge are both at the same port

Product Data Sheet (SP24S007)

• •Cell specifications: 8~24 strings of LiFePO4 battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 50A
• •Continuous discharging current: 50A
• •Consumption of running: ≤20mA
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

The JBD SMART BMS 50A SP24S007 (8-24S) is a dependable Battery Management System designed for lithium-ion and LiFePO4 battery packs with 8 to 24 series cells. It supports a continuous discharge current of 50A, making it suitable for moderate power applications. The BMS ensures battery safety with protection features such as overcharge, over-discharge, overcurrent, short circuit, and temperature management. Its active cell balancing maintains voltage consistency across cells. With UART, RS485, CANBUS communication, and Bluetooth monitoring capabilities, it provides real-time diagnostics and efficient battery management for solar systems, e-mobility solutions, and backup power systems.
