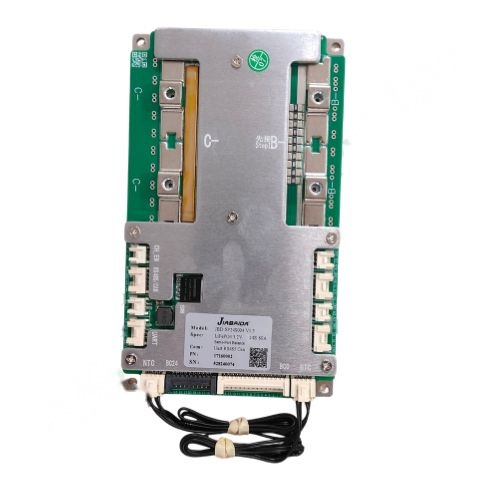

BMS 8-24S 60A SMART JBD (SP24S007) (4796)

JBD Smart BMS 8-24S 60A (SP24S007) Charge and discharge are both at the same port

Product Data Sheet (SP24S007)

• •Cell specifications: 8~24 strings of LiFePO4 battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 60A
• •Continuous discharging current: 60A
• •Consumption of running: ≤20mA
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

The JBD SMART BMS 60A SP24S007 (8-24S) is a reliable Battery Management System for lithium-ion and LiFePO4 battery packs configured with 8 to 24 series cells. It supports a continuous discharge current of 60A, ensuring stable performance for mid-range applications. The BMS offers key protections including overcharge, over-discharge, short circuit, overcurrent, and temperature safeguards to enhance battery safety and longevity. Equipped with active cell balancing, it ensures voltage uniformity across cells. With support for UART, RS485, and CANBUS communication, along with Bluetooth connectivity, it provides real-time monitoring and diagnostics for energy storage, solar systems, and EVs.
