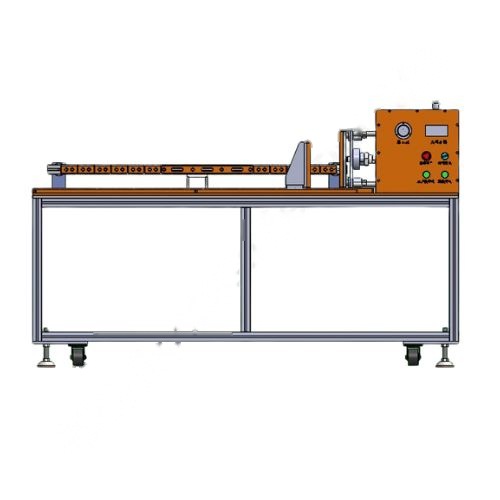

1 SQUARE BATTERY EXTRUDER MACHINE SKXD-JY01

SQUARE BATTERY EXTRUDER (OFFLINE OR ONLINE OPTIONAL) (SKXD-JY01)

Product Data Sheet

1 Year Warranty

Reliable Compression Testing for Prismatic Lithium Battery Cells

The SKXD-JY01 Square Battery Extruder Machine is a precision-engineered compression and extrusion system designed for mechanical safety testing of prismatic (square) lithium battery cells. Built to comply with global battery testing standards such as IEC, UN38.3, UL1642, and GB/T, this machine simulates extreme compression scenarios to assess the cell's mechanical durability, deformation resistance, and short-circuit behavior under external force.

Engineered for safety, repeatability, and control, the SKXD-JY01 is widely used by battery manufacturers, research institutions, and third-party testing labs to qualify lithium-ion cells for use in electric vehicles (EVs), energy storage systems (ESS), consumer electronics, and industrial batteries.

Key Features

• •

  High-Force Extrusion Capability Applies compression force up to 20kN or higher, mimicking real-world crushing conditions experienced in transport, usage, or failure modes.

• •

  Suitable for Prismatic Batteries Specially designed fixture accommodates square or rectangular cell structures securely during the extrusion test.

• •

  Touchscreen Control Interface Fully digital interface allows easy control of compression parameters including speed, force, duration, and cycle modes.

• •

  Real-Time Force & Displacement Display Monitors compression depth and load in real-time with high accuracy sensors. Ensures test repeatability and traceability.

• •

  Emergency Safety Protection Built-in pressure limit alarms, automatic retraction, and emergency stop button for safe test execution.

• •

  Data Output & Archiving Test data (force, stroke, time) can be exported via USB or Ethernet for quality records, reports, and R&D analysis.

Technical Specifications

• •Model SKXD-JY01
• •Application Prismatic / Square Lithium Cells
• •Max Compression Force 20kN (customizable up to 50kN)
• •Compression Speed 1-100 mm/min (adjustable)
• •Stroke Range 0-200 mm
• •Force Accuracy ±0.5% FS
• •Displacement Accuracy ±0.1 mm
• •Display Touchscreen HMI + Digital Indicators
• •Control System PLC Controlled + Programmable Logic
• •Safety Features Emergency Stop, Overload Protection
• •Power Supply AC 220V ±10%, 50Hz
• •Working Temperature 0-40°C
• •Machine Dimensions Approx. 800mm × 700mm × 1500mm
• •Weight ~250kg

Applications

• •

  Battery Mechanical Safety Testing Evaluate how square/prismatic cells respond to mechanical extrusion or deformation, crucial for EV crash scenarios and regulatory certifications.

• •

  Research & Development Used in R&D labs to simulate mechanical abuse and test structural improvements in cell casing and internal designs.

• •

  Quality Control Integrated in battery production lines or QA labs to validate structural integrity before shipping or assembly.

• •

  Certification Testing Complies with international safety standards such as UN38.3, IEC 62133, UL1642, GB 31241, etc.

Why Choose the SKXD-JY01?

• •Purpose-Built for Square Lithium Cells
• •High Accuracy Compression Control
• •Compliant with Global Battery Safety Standards
• •Safe and Easy to Operate
• •Perfect for Labs, Production, or Certification
