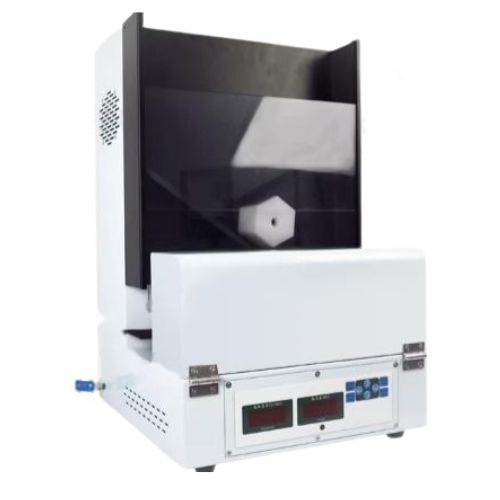

2 CHANNEL 32700 BATTERY SORTING MACHINE (SKXD-S200) (b481)

2 CHANNEL 32700 BATTERY SORTING MACHINE (SKXD-S200)

Product Data Sheet

1 Year Warranty

Precision Sorting for 32700 Cylindrical Lithium Cells — Fast, Accurate, and Reliable

The SKXD-S200 is a high-precision 2-channel battery sorting machine designed specifically for 32700 cylindrical lithium battery cells. Built for speed, accuracy, and smooth integration into battery production lines, this machine helps manufacturers and labs classify battery cells by internal resistance and voltage, ensuring consistent performance across packs and modules.

Ideal for cell grading, capacity matching, and quality control, the SKXD-S200 combines industrial-grade automation with user-friendly operation. Whether you are a battery manufacturer, lab engineer, or EV pack producer, this 32700 battery sorter enhances both productivity and quality assurance.

Key Features

• •

  Dedicated for 32700 Cylindrical Cells Specifically tailored to handle 32700 cells (32mm diameter × 70mm length), ensuring safe and secure testing and sorting.

• •

  Dual-Channel Sorting System Features 2 independent testing channels, allowing parallel processing of two cells at a time for higher efficiency.

• •

  High-Speed Internal Resistance & Voltage Testing Measures internal resistance and open-circuit voltage (OCV) within milliseconds, powered by a precision-grade internal tester.

• •

  Automated Grading Logic Sorts cells into predefined levels (typically 5–10 grades) based on user-defined thresholds for IR and voltage.

• •

  Touchscreen Interface & Software Control Easy-to-use touchscreen with real-time display of test data, grading status, and operational controls. Can be connected to PC for data export and logging.

• •

  Safety & Stability Equipped with cell clamping protections, overload safeguards, and misplacement detection for secure and reliable sorting.

• •

  Compact, Efficient Design Small footprint machine with ergonomic layout — perfect for lab benches or integration into production lines.

Technical Specifications

• •Model SKXD-S200
• •Application 32700 Cylindrical Lithium Cells
• •Sorting Channels 2 Channels (Parallel Testing)
• •Testing Parameters Internal Resistance (IR), Voltage (OCV)
• •Voltage Range 0–5V
• •Voltage Accuracy ±0.5mV
• •Internal Resistance Range 0–100mΩ
• •IR Accuracy ±0.2mΩ
• •Testing Speed ≤ 1 second per cell
• •Sorting Levels Up to 10 Bins (Configurable)
• •Interface Touchscreen / Optional PC Software
• •Power Supply AC 220V / 50Hz
• •Dimensions Approx. 900mm × 600mm × 900mm
• •Weight ~120 kg

Ideal Applications

• •

  EV Battery Manufacturing Grade and match cells for optimal EV battery performance.

• •

  Battery Pack Assembly Lines Ensure consistent voltage and IR values for stable packs.

• •

  Research & Development Analyze large batches of 32700 cells in labs and pilot lines.

• •

  Quality Control & Testing Conduct post-production verification or incoming inspection.

Why Choose SKXD-S200?

• •Engineered for 32700 cylindrical cells
• •High-speed dual-channel sorting
• •Precise IR and voltage measurement
• •Compact, industrial-grade build
• •Trusted by battery factories and labs
