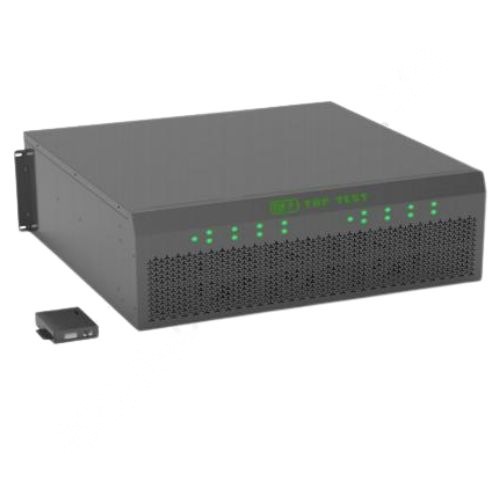

5V 60A SQUARE BATTERY CAPACITY CABINET (SKXD-5V60A-8CH) (b47e)

5V 60A SQUARE BATTERY CAPACITY CABINET (SKXD-5V60A-8CH)

Product Data Sheet

1 Year Warranty

High-Current Capacity Testing for Prismatic Lithium Battery Cells

The SKXD-5V60A-8CH is a precision-engineered Square Battery Capacity Cabinet designed to perform high-current capacity testing on prismatic lithium-ion battery cells. Equipped with 8 independent channels, each capable of charging and discharging at 5V and 60A, this system ensures accurate and efficient testing of medium to large-format cells used in EVs, e-bikes, energy storage systems (ESS), and other high-drain applications.

Whether for R&D, quality control, or production-level grading, the SKXD-5V60A-8CH provides robust performance with advanced features like real-time data logging, graphical test monitoring, and custom charge-discharge profile configuration — all built into a durable, industrial-grade cabinet.

Key Features

• •

  High-Current Output (60A) Each channel supports up to 60A of current — ideal for testing large-capacity square lithium cells under realistic conditions.

• •

  8 Independent Channels Test up to 8 cells simultaneously with independent control and monitoring, maximizing productivity and throughput.

• •

  Programmable Test Profiles Supports complex test sequences including CC (constant current), CV (constant voltage), rest, loop cycles, and more.

• •

  Real-Time Monitoring & Recording Monitor voltage, current, capacity, energy, and test status in real time via a user-friendly PC software interface.

• •

  Data Logging & Export Automatically record all test data with export capability in CSV or Excel formats for reporting and analysis.

• •

  Built-In Protection Features Includes over-voltage, over-current, over-temperature, and reverse polarity protection for safe and reliable operation.

• •

  Remote Control & Networking Operate the cabinet remotely via Ethernet or USB — perfect for integration into automated testing lines or centralized labs.

Technical Specifications

• •Model SKXD-5V60A-8CH
• •Channels 8 Independent Channels
• •Voltage Range 0–5V
• •Current Range (per channel) 0–60A
• •Voltage Accuracy ±0.05% FS
• •Current Accuracy ±0.1% FS
• •Capacity Range 0.01Ah – 9999Ah
• •Test Modes CC, CV, Pulse, Rest, Loop
• •Data Storage Local + Remote (PC Software)
• •Control Interface PC, Ethernet, USB
• •Cooling System Intelligent Air Cooling
• •Working Temperature 0–45°C
• •Power Supply AC 220V ±10%, 50Hz
• •Cabinet Size Approx. 1200mm × 700mm × 1800mm
• •Weight ~350kg

Applications

• •

  EV Battery Cell Testing Evaluate high-drain square lithium cells used in electric vehicles under real-world discharge conditions.

• •

  Energy Storage Systems (ESS) Test the performance and reliability of cells for stationary battery storage.

• •

  Battery Grading & Matching Sort cells by capacity and internal resistance for consistent pack performance.

• •

  R&D & Quality Assurance Execute test programs to validate new cell designs or perform routine QA checks before shipment.

Why Choose the SKXD-5V60A-8CH?

• •High-current 60A support per channel
• •Independent control of 8 square battery cells
• •Precise capacity and performance analysis
• •Ideal for both lab testing and production QA
• •User-friendly software and safe operation
